Restoration thread for my 1983 Y-reg Mars Red GTi, non-sunroof model

Thanks for all the comments, it really does help to keep me going, as it can be tedious at times getting to this level of OCD !!

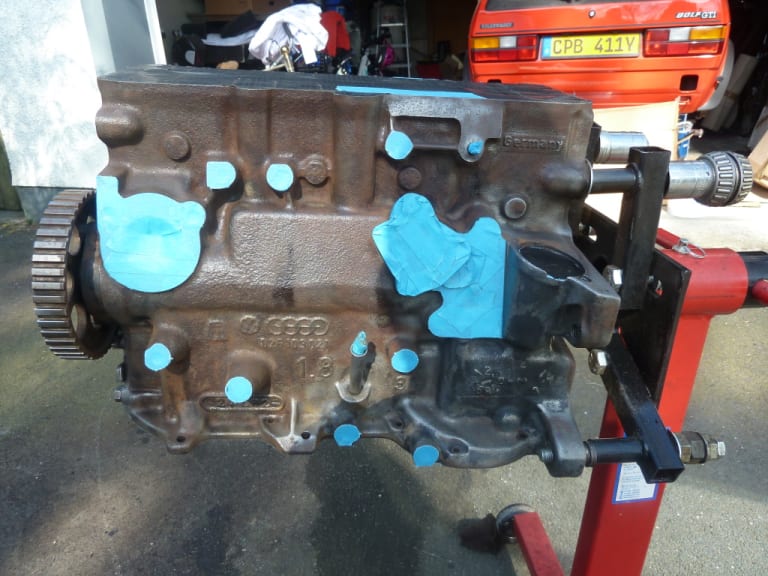

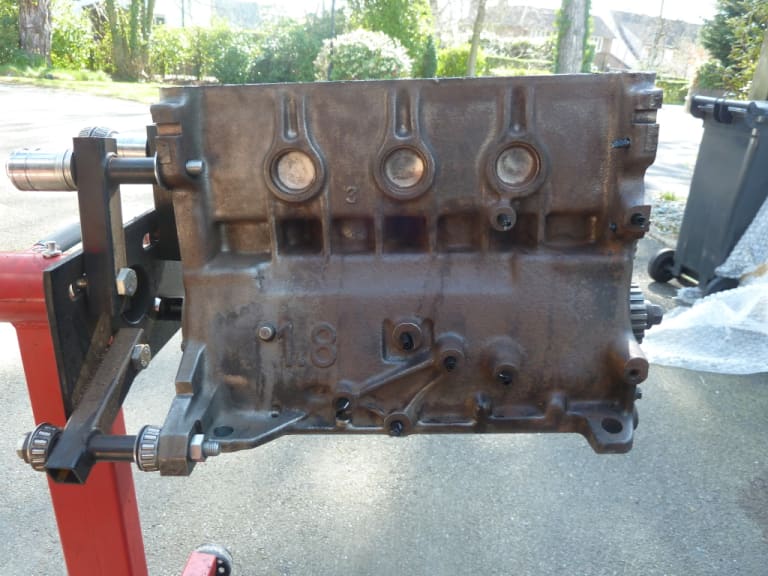

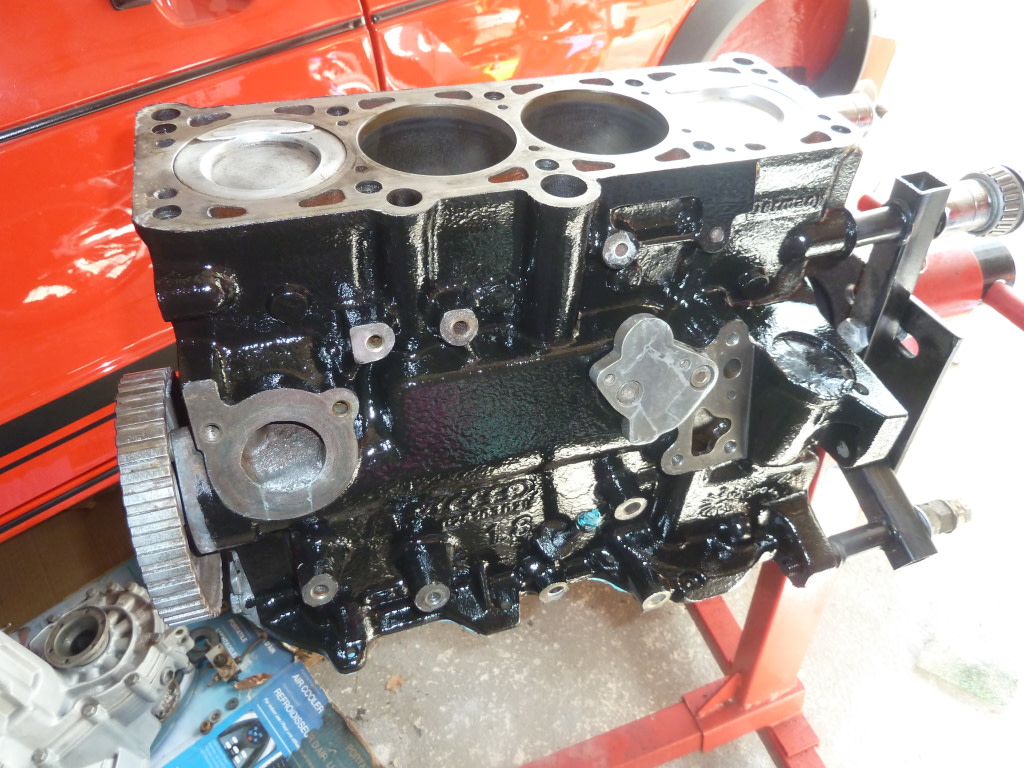

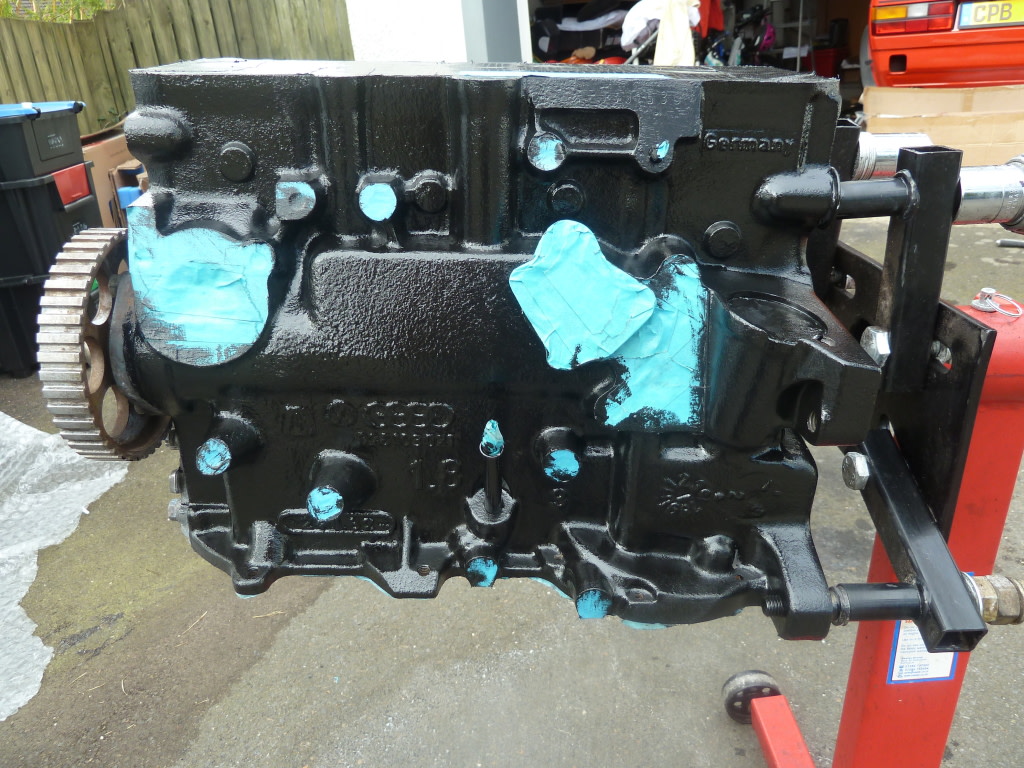

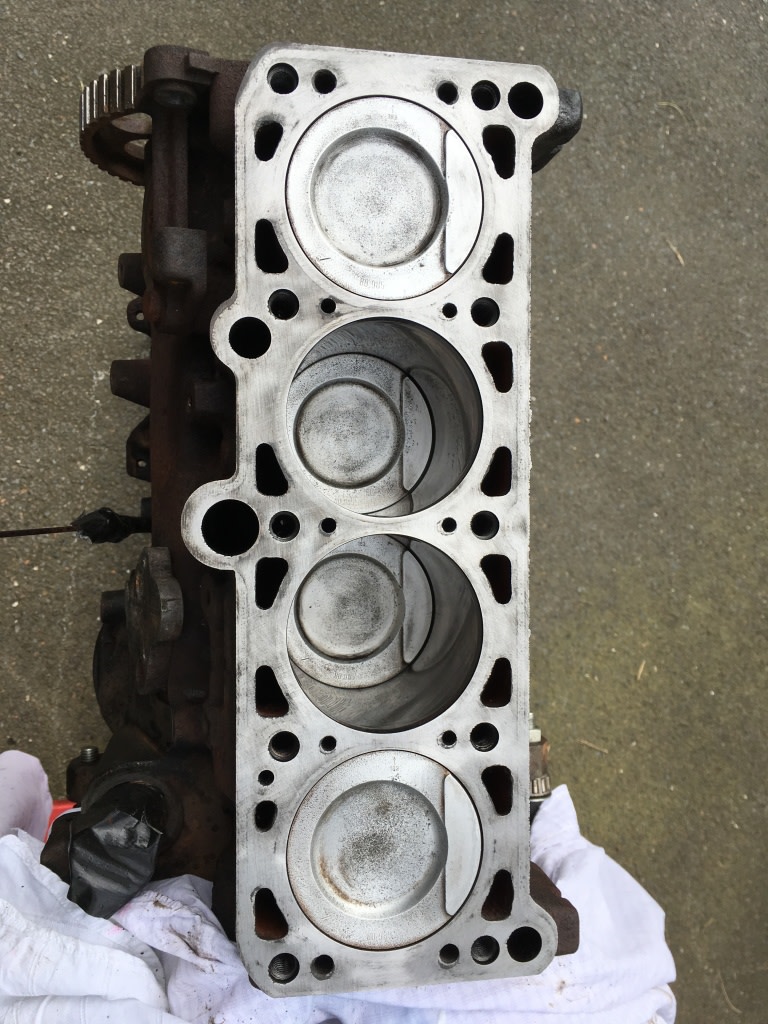

Engine block stripped, cleaned, degreased using Bilt Hamber surfex HD, wire wheeled for many many hours, then de-greased again, then POR15 metal prep, rinsed and dried thoroughly followed by 2 coats of POR15 engine enamel.  I'm very pleased with the finish, although I would have preferred less of a gloss finish.  I guess it will be much easier to keep clean though!  It probably took me 2 hours just to mask everything off so carefully, I'm a dab hand with the razor blade now alright.


P1070431.JPG P1070432.JPG P1070436.JPG P1070487.JPG P1070488.JPG

Post

Back to the top
The bad news is that I have now realised the car will definitely not be anywhere near ready to attend the show this weekend.  The good news is that I have been pressing on with getting it as far forward as I can.  I have the rocker cover, engine mount, sunp pan, timing belt guards away for powder coating and won't be back til Thursday.  I have had to order new crankshaft pulley bolts from VW Classic Parts in Germany, and I found my plastic timing belt inner guard is cracked so I'm waiting on VW Heritage getting them back into stock.  The upshot of this being I cannot get the new head fitted and continue the engine build.  Bit of a shame, but I'm not going to rush it at this stage.

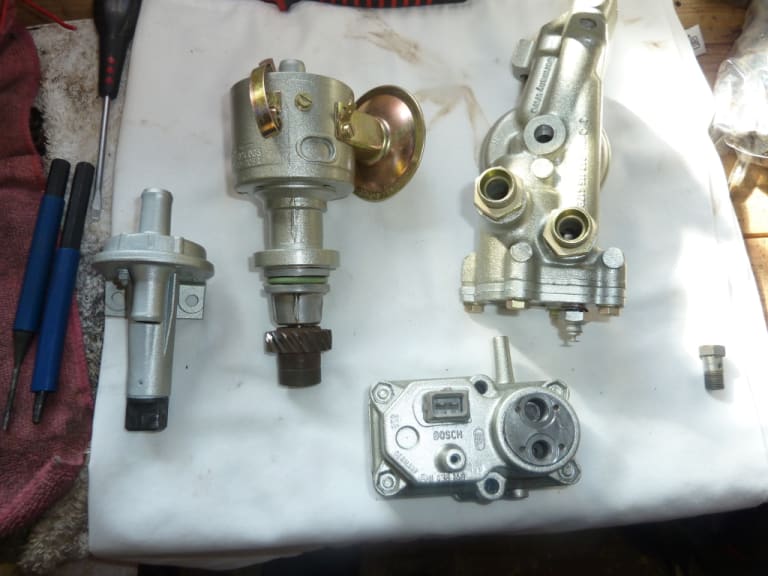

Some finished bits waiting for fitting to the engine:-

P1070490.JPG P1070492.JPG

Post

Back to the top

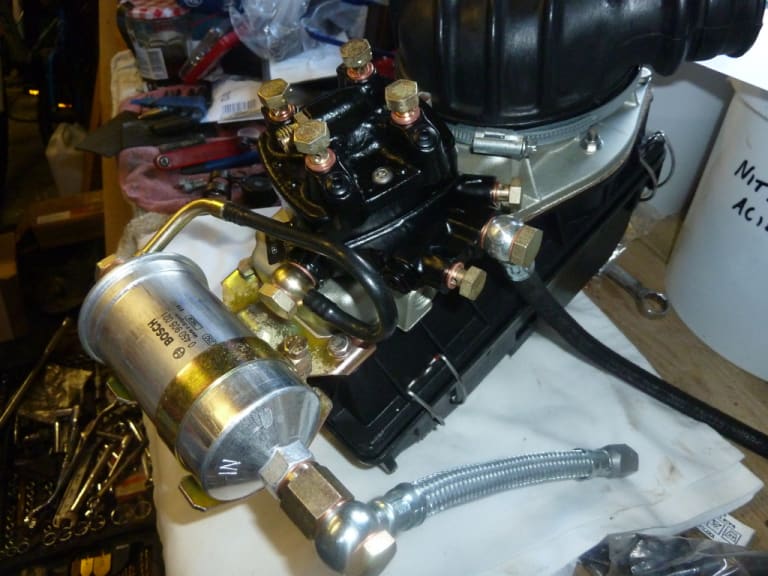

Metering head assembly now complete with new fuel filter, banjo washers and new flexible connection hoses from Mark at Classic VW.  I've also got a K&N filter element in there to help the engine a bit, and have drilled out the lower airbox section (I know some people hate that, but I couldn't resist).

P1070500.JPG P1070502.JPG

Post

Back to the top
Also got the inlet manifold finished.  This had been sent away with the cylinder head to "The Man In The Shed" for port matching to the head and also opened up to accept the Audi 2.2 throttle body.  Dave's work is as good as it gets.  Once I got it back, the manifold was given a few coats of etch primer, Aluma Blast and Diamond Clear Lacquer to match the rest of the bits.


P1070504.JPG P1070506.JPG P1070507.JPG

Post

Back to the top
Looking great Pete!
I'm at a really similar stage to you (and have finally updated my build thread). I'm not going to the same level of detail as you as it's taken me so long to make any progress at all (although when I see the pictures I keep questioning myself).
Keep it up!

My rebuild thread I will try and keep up to date: here

Post

Back to the top

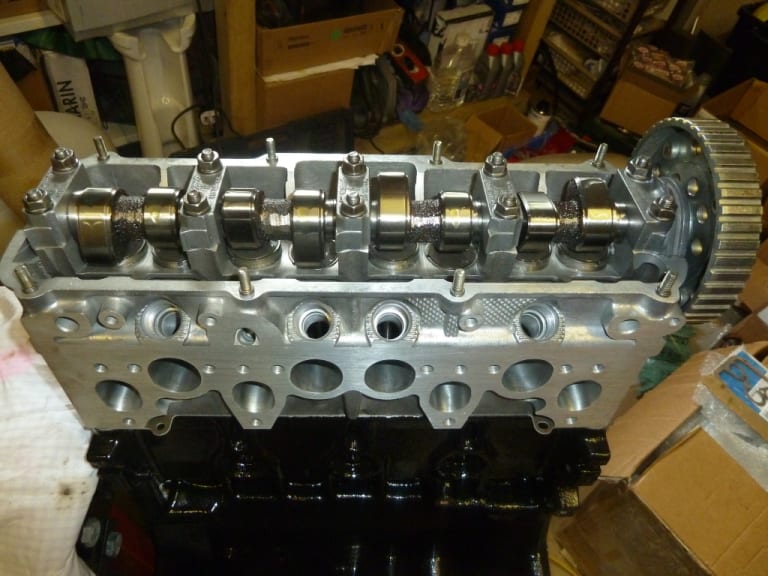

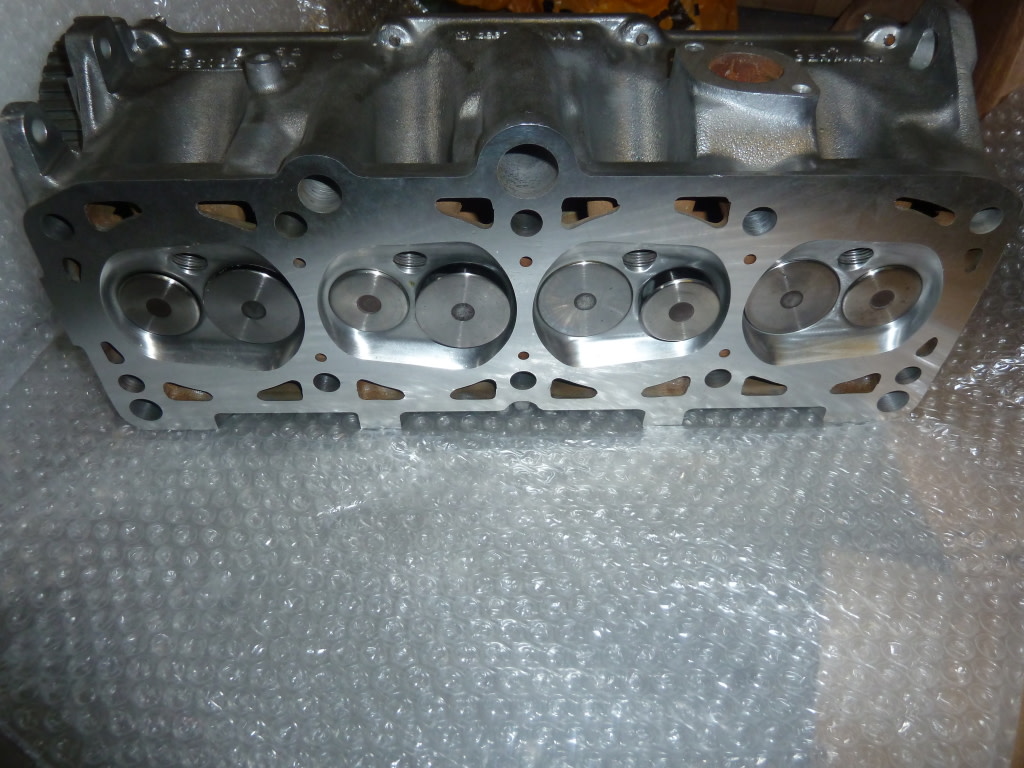

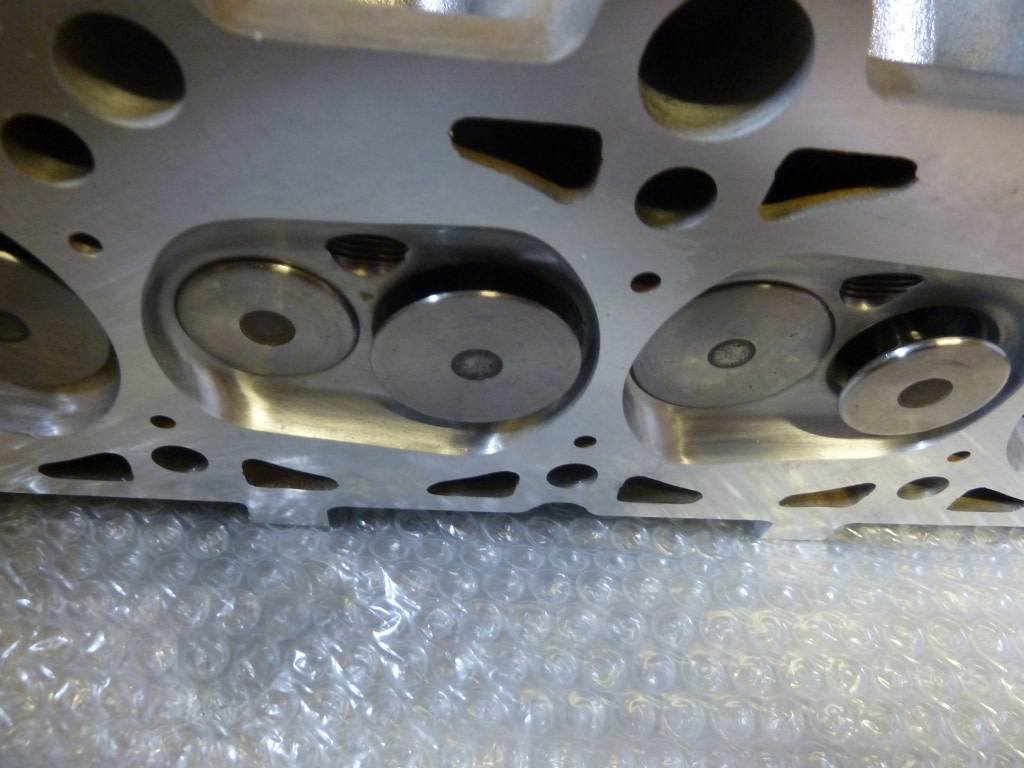

So I mentioned earlier that I wasn't going to be re-using my original head, the reason being I fancied something that looked totally original but had a bit more power.  Nothing too crazy.  I had bought a 2nd hand  head in 2010 for this very reason (nothing like planning ahead), as well as a Schrick 288 cam (and the head I bought came with a Piper BP320 race cam).  There was only one man who would be doing this work, and after a long time on the phone with Dave Crissel (aka The Man in the Shed) discussing what I wanted, he advised the Schrick 288 would be a bit too much for road use, so I bit the bullet and ordered a brand new Schrick 276 from Germany.  Once received, this was all shipped off to Dave and he worked his magic.  It has been returned as a Stage 2 upgrade, with the new 276 cam re-shimmed, new valves and springs, guides etc.  I am really delighted with the quality of workmanship and Dave was such a gent to deal with.  Not cheap by any means, but hopefully worth it.

P1070510.JPG P1070511.JPG P1070514.JPG P1070517.JPG

Post

Back to the top

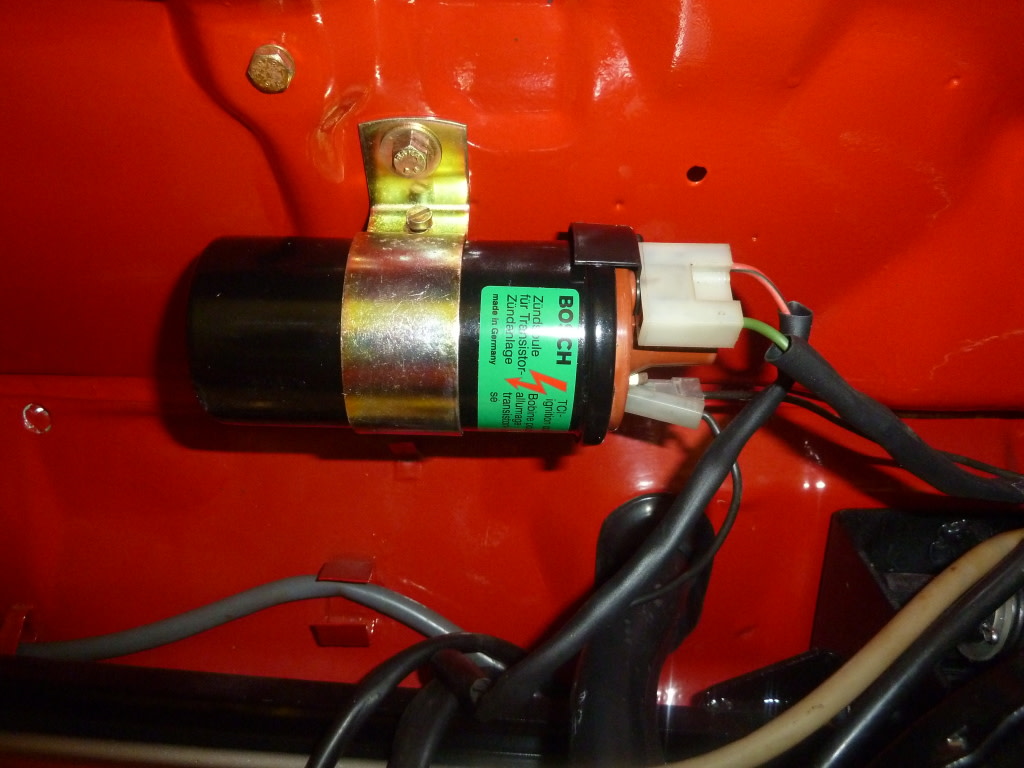

Original Bosch ignition coil refurbished, the terminal connectors were zinc plated, and the coil body rubbed back to bare metal and etch primed, Eastwood Underhood Black and Diamond Clear Lacquer.  After Yomp's previous suggestion, new Bosch sticker sourced from DMB Graphics.


Post

Back to the top

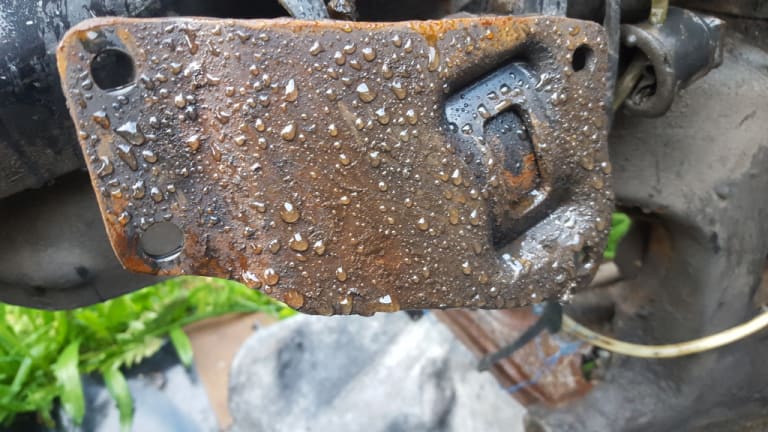

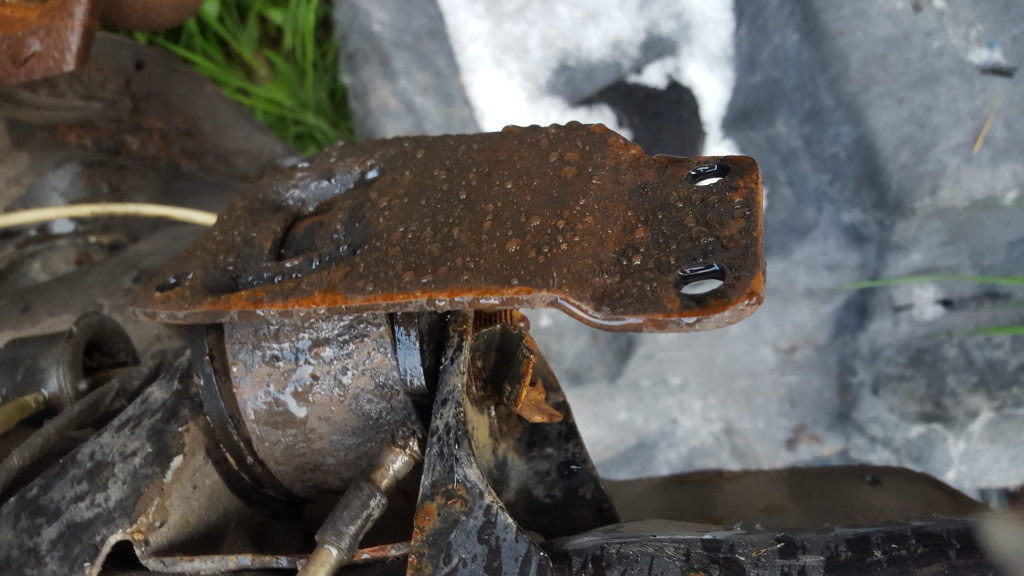

I've had a bit of a set-back.  Picked up some final bits from the powder coaters yesterday, and when I got home to start re-assembling the timing belt end of the engine, I found this:-

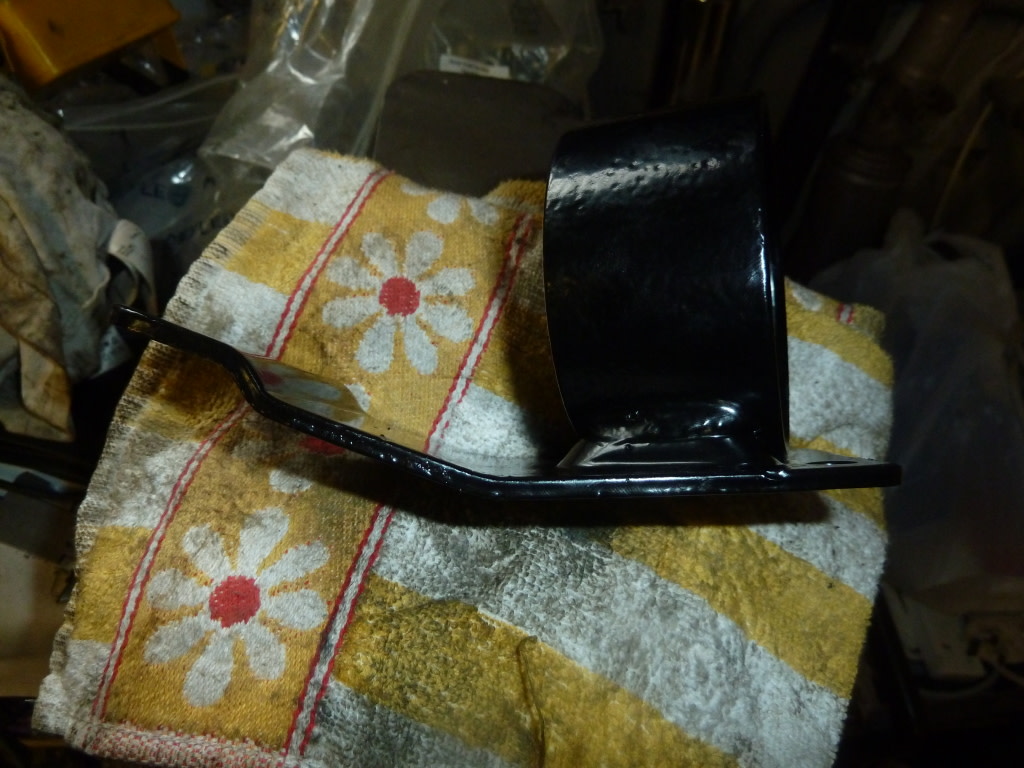

It must have been driven over or something to bend it like that, but the guys mustn't have realised because they powdercoated it as normal.

Anybody got a spare one they'd sell?  Or do you think it will be possible to bend this one back and re-use?

Post

Back to the top
That's annoying!
If that is the LH engine mount I sold my spare just last week!
I guess if you got enough heat on it it should bend back. Given the load will be across the widest section perpendicular to the bend it shouldn't bend again in normal use. You'd need to get it recoated though.

My rebuild thread I will try and keep up to date: here

Post

Back to the top

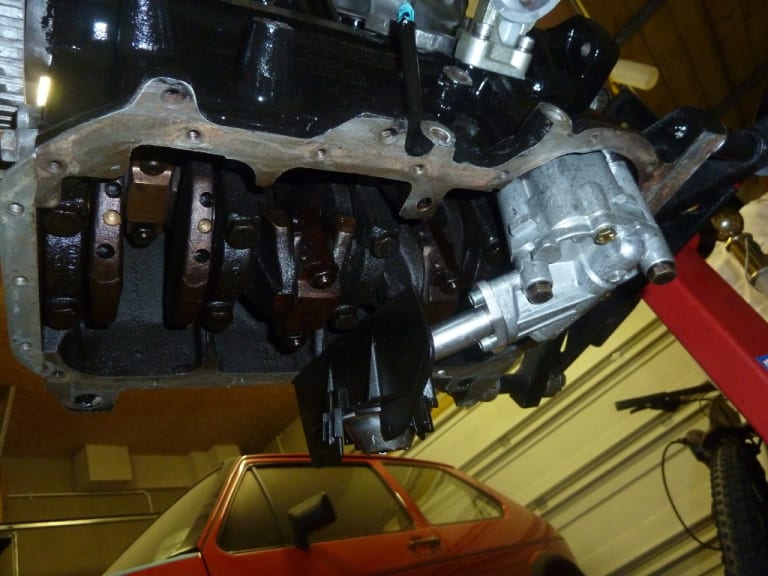

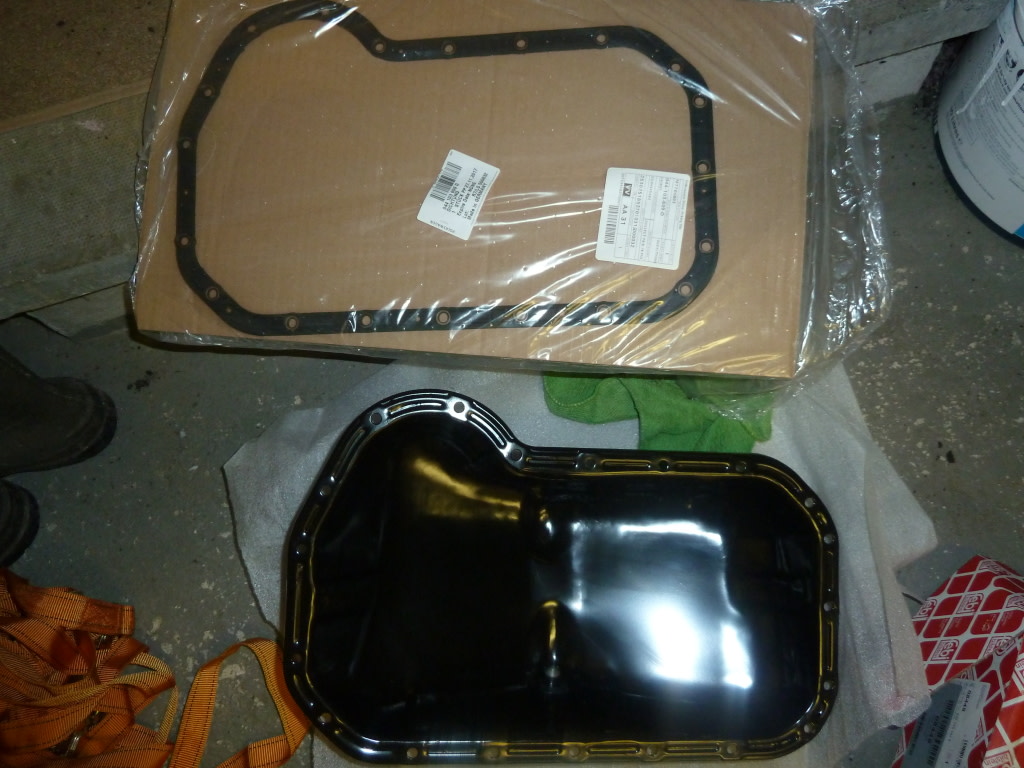

Not too much progress due to work and then school holidays, but this evening I managed to get the new Febi oil pump fitted followed by the new Febi sump.  I used a new genuine VW rubber gasket and stainless bolts and washers.

P1070612.JPG P1070613.JPG


Apart from that, I've just been bolting on the bits of the engine following restoring them:-


Post

Back to the top
did you sort out  a mounting mate mount.jpg mount 2.jpg

Do not know a lot but willing to help if possible

Post

Back to the top
Paul you been magnet fishing again bud
 :lol:

Post

Back to the top

nicci21paul said

did you sort out  a mounting mate mount.jpg mount 2.jpg

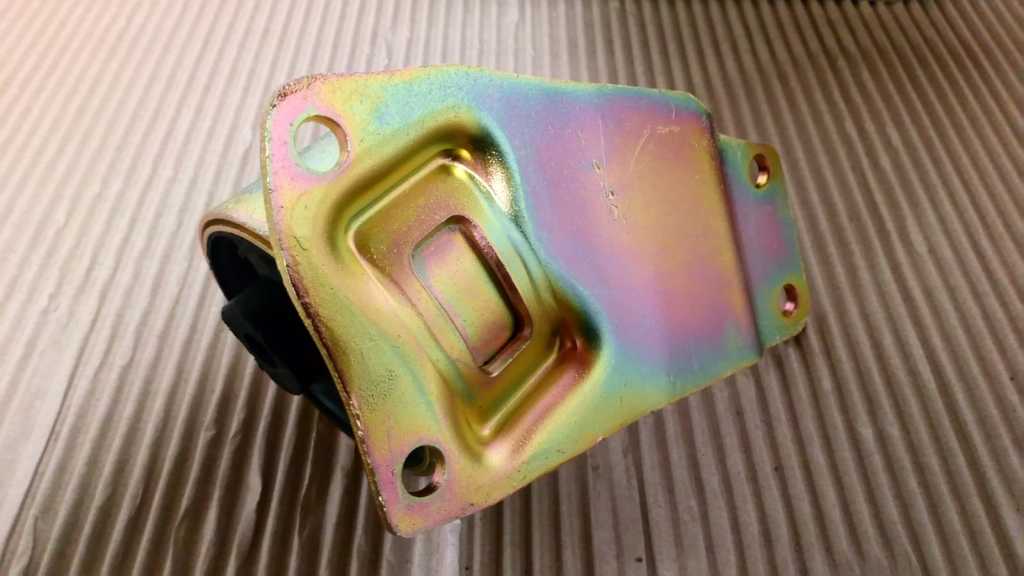

Got sorted thanks, managed to straighten it again. Have now had it vapour blasted and zinc plated with new bush pressed in.

Post

Back to the top

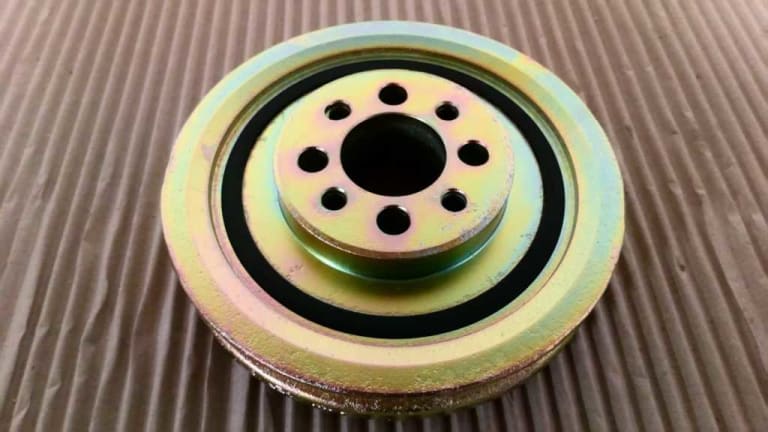

Thanks to Paceman, also got a crankshaft pulley wheel as the dampener insert on mine was a bit cracked & split in places. This has also now been vapour blasted and zinc plated.

Post

Back to the top

Pistol said

Thanks to Paceman, also got a crankshaft pulley wheel as the dampener insert on mine was a bit cracked & split in places. This has also now been vapour blasted and zinc plated.

Wow! Looks great!

Out of interest, how did you clean up your distributor? Was that vapour blasting as well?


My rebuild thread I will try and keep up to date: here

Post

Back to the top
Thanks.

I thought distributor was a bit delicate for any blasting so just used different wire wheels on a drill and 240 grit sandpaper. After a good degreasing it came up pretty well anyway.

Post

Back to the top
Thanks Pete,
I was thinking the same so thanks for confirming!


My rebuild thread I will try and keep up to date: here

Post

Back to the top

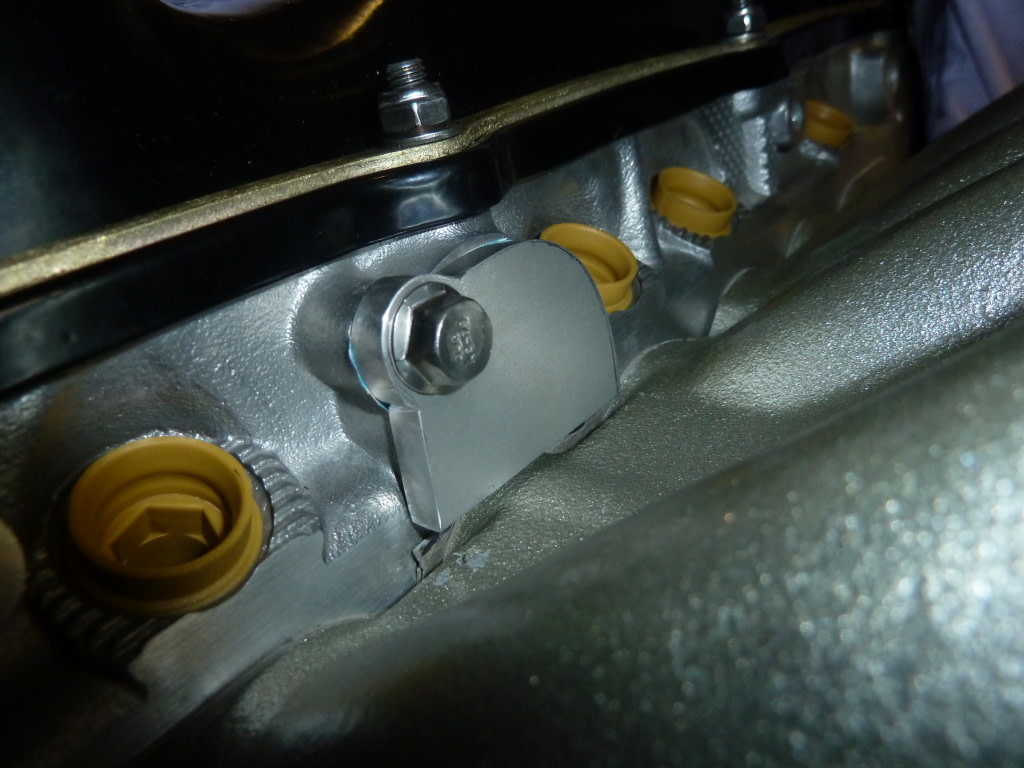

Time for an update.  After quite a wait for crankshaft pulley bolts from VW Classic parts, I have been able to complete the engine build.  One thing I had to do was make up a blanking plate for the air supply port on the new head, as I am using the original injectors and not the air shrouded ones.

Got a small plate of 6mm thick Aluminium and some 0.75mm gasket paper, made a template and got my Dad to cut it out properly for me (he's a retired Silversmith which is handy!!).

P1070781.JPG P1070782.JPG

Post

Back to the top
Timing belt end all fitted up with new genuine belt and tensioner.  I had to mark the venrier pulley myself to coincide with No. 1 cylinder valves being in correct position for TDC, using feeler gauges under cam lobes to confirm they were equal.  New genuine lower timing belt cover fitted as my original one had a crack.  I did have to trim the plastic moulding a bit on the new one as it was fouling on the tensioner pulley a bit.


Post

Back to the top
Alternator fitted, then realised my original tensioning bracket was not correct, so had to get another one off eBay and this still needs to be zinc plated.

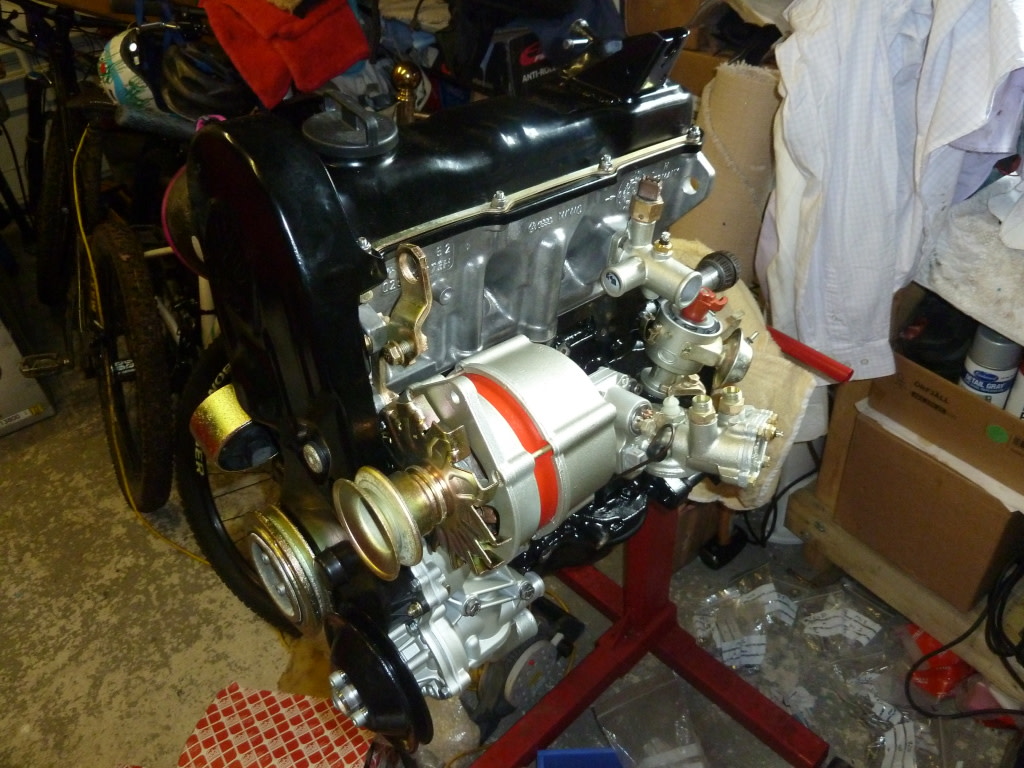

And finally got the inlet manifold bolted up.
