Bike Carbs - in tank fuel pump / sender!?

Post

Back to the top
Bit of background, I'm fitting Kawasaki ZX9R bike carbs to a 1993 2.0l 16v 9a Corrado engine with a 1100cc 1983 MK1 golf wiring loom + MK2 golf 16v wiring loom.

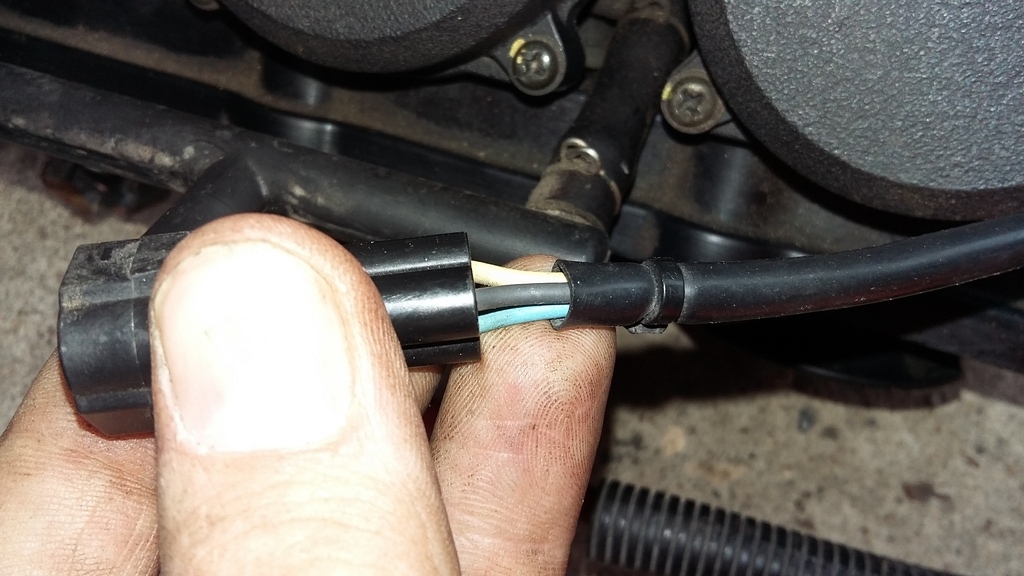

In respect of the carbs (Kawasaki ZX9R) there are 3 No. wires coming from them, colours are:
Blue
Black
Yellow

What do I need to connect them to?



  • I've got a bike fuel pump which I'll be fitting at the back of the car (as I've read the pump is better at pushing fuel along the lines rather than pulling it along!?), it's got 2 wires coming from it, one black and one red, I assume I need an earth (or fuel pump relay earth trigger) and ignition live to run to it?

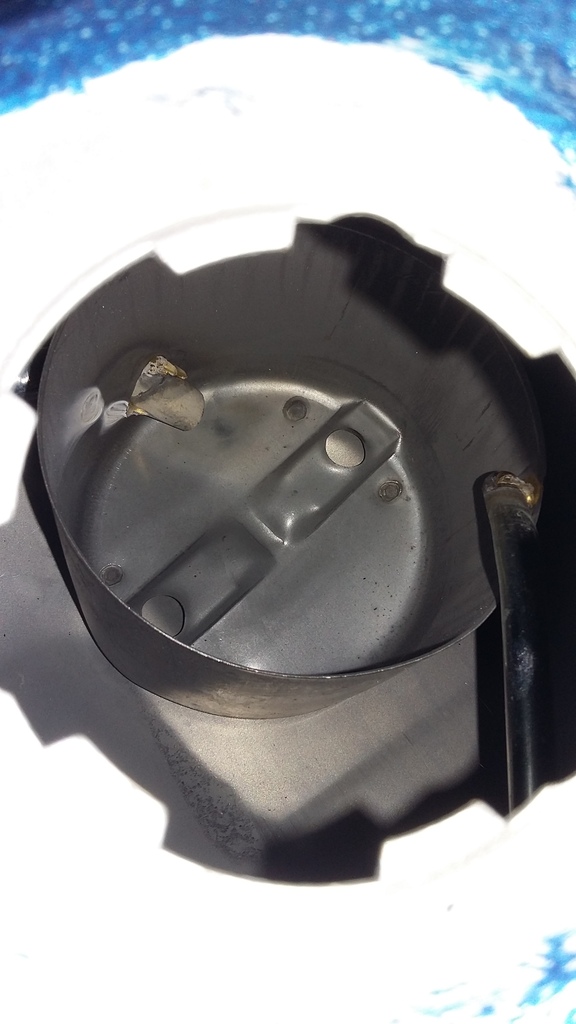

    I'll be putting an inline fuel filter between the tank and the fuel pump however I've got a GTI petrol tank (which reading through other posts may in fact be a diesel tank!?) with an internal swirl pot fitted, do I need either a sender unit or lift pump?

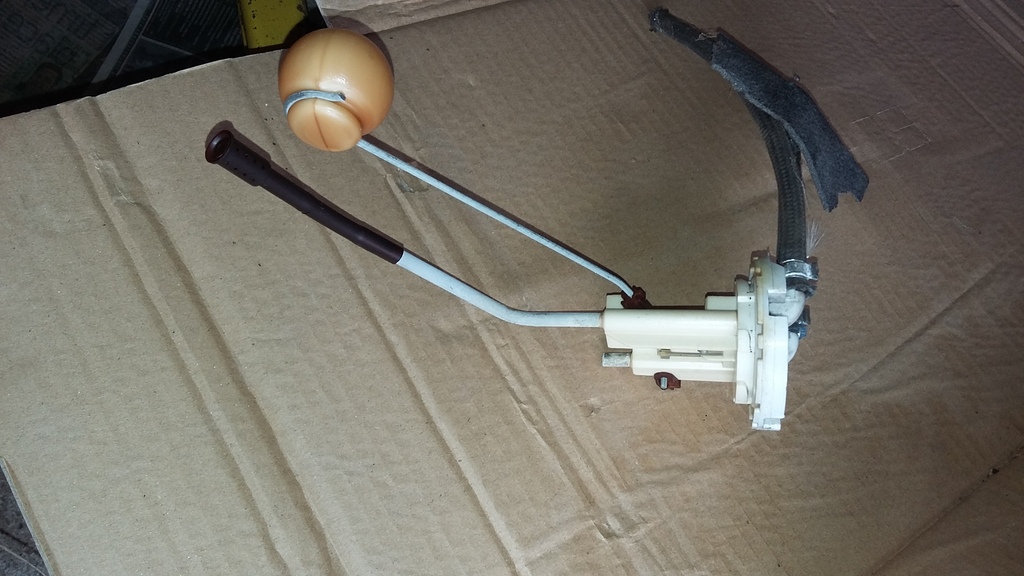

    The original sender unit from the carbed tank doesn't fit because of the swirl pot!





    Is there a best / recommended throttle cable / linkage for the carbs? Most websites I've seen just say using a universal cable with solderless nipple would be sufficient?

Post

Back to the top
you'll need a gti level sender for that tank, what you have is a pattern GTI/diesel tank with a more primitive internal swirl pot. it will probably be fine to run the bike carb pump to the outlet on the bottom, the gti can struggle with this design tank but the bike carbs should be ok i recon.

for the pump i believe they cut out automatically if you crash or when the carbs dont need any more fuel, if so you can just feed it with ignition live. otherwise assuming its the later ce2 blade fusebox I would fit a kjet fuel relay to slot 2 and feed the p[ump from E/14, or you could use the large spade N with an inline fuse. GSF stock the relay you need part number 935VG0090

Hello my name is John and I'm a dub addict.



My wiring diagrams and other documents have moved here:

VAG Documents & Downloads

You'll need to sign into google/gmail for the link to work! (its free!)

Post

Back to the top
Cheers for the response it really is very appreciated!!

So this is what I need for the tank then?

https://www.vwheritage.com/shop/golf-mk1/171919051L/fuel-gauge-sender-mk1-golf-jetta-for-k-jetronic-engines/?crumbStartPage=1&crumbStartRow=1

And that will clear the internal swirl pot?

Yeah I'm pretty sure the pump will cut out if the carbs are full so I shouldn't need a fuel pressure regulator either.

This is the fusebox I've got (yes realise there's quite a few relays missing! haha)



So I would just plug that relay you mentioned into slot 2 and run ignition live to the pump, as well as a ground, and it should be fine?

Any ideas with the 3 wires from the carbs, blue, black and yellow?

Post

Back to the top
yep thats the right level sender, see if you can get a 2nh hand one first though!

you have the ce1 fusebox so as above for wiring and relays :)

no idea on the carb wires, if i had to guess throttle position sender but i dont see why bike carbs would require them…  any pics of what they run to?

Hello my name is John and I'm a dub addict.



My wiring diagrams and other documents have moved here:

VAG Documents & Downloads

You'll need to sign into google/gmail for the link to work! (its free!)

Post

Back to the top
Awesome cheers.

I'll get a picture showing where the wires go tomorrow mate.

Post

Back to the top

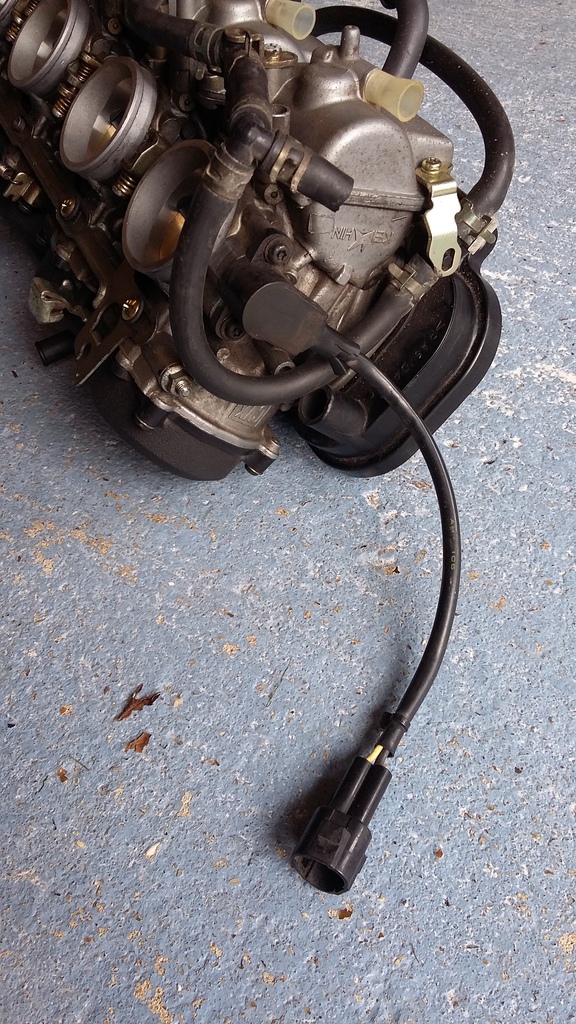

Ok so here's a picture of where the wires come from:



After a little research, and like you said, I think it's for the throttle position sensor so I won't be needing it, one less thing to worry about! :thumbs:

Post

Back to the top
yeah lookign at that i would say 99.9999999% its a TPS. tuck it up safe in case you go for an aftermarket spark kit, they might be able to work with it I suppose?

Hello my name is John and I'm a dub addict.



My wiring diagrams and other documents have moved here:

VAG Documents & Downloads

You'll need to sign into google/gmail for the link to work! (its free!)
