CE1 circular pin removal tool
Posted
#1520304
(In Topic #202322)
Regional Host Wales

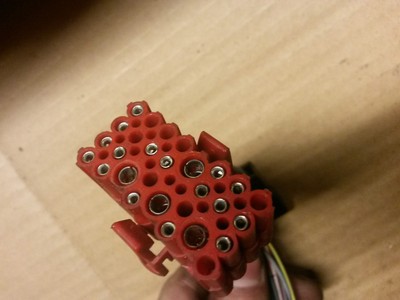

Can anyone recommend a tool for removing the large and small circular pins from a CE1 fusebox plug?
http://i.ebayimg.com/00/s/MTIwMFgxNjAw/z/E-AAAOSwaNBUgasg/$_1.JPG
http://i.ebayimg.com/00/s/MTIwMFgxNjAw/z/E-AAAOSwaNBUgasg/$_1.JPG
Posted
Newbie
Schwaben makes a set that works for all vw platforms.
Posted
Local Hero
Hi Sam,
Depending on how much work you plan to do on the loom there are low cost options to mega expensive kits with all sorts of tools to cover all vehicles.
When I did my G60 loom I renewed all of the connectors and had to merge with the CE1 fuse box so bought a kit from laser.
Alternatively you could get a multi tool like this which covers the ce1 connectors:
PoleVolt Ltd. Terminal removal tool. 2 Items
Depending on how much work you plan to do on the loom there are low cost options to mega expensive kits with all sorts of tools to cover all vehicles.
When I did my G60 loom I renewed all of the connectors and had to merge with the CE1 fuse box so bought a kit from laser.
Alternatively you could get a multi tool like this which covers the ce1 connectors:
PoleVolt Ltd. Terminal removal tool. 2 Items
Posted
MOTY 2013
them green tools are garbage, this one does the job:
http://uk.farnell.com/te-connectivity/305183/extraction-tool-series-1/dp/1680528
http://uk.farnell.com/te-connectivity/305183/extraction-tool-series-1/dp/1680528
Hello my name is John and I'm a dub addict.
My wiring diagrams and other documents have moved here:
VAG Documents & Downloads
You'll need to sign into google/gmail for the link to work! (its free!)
My wiring diagrams and other documents have moved here:
VAG Documents & Downloads
You'll need to sign into google/gmail for the link to work! (its free!)
Posted
Regional Host Wales
Thanks everyone.
The laser and schwaben tools seem expensive at £80+
rubjonny - I'm guessing that's for the small pins? Any suggestions for the large ones?
The laser and schwaben tools seem expensive at £80+
rubjonny - I'm guessing that's for the small pins? Any suggestions for the large ones?
Posted
MOTY 2013
yup thats the small pin tool.
large ones are easy, small screw driver or a small pick tool down the front either side to lever the 2 tabs in, then they fall out
large ones are easy, small screw driver or a small pick tool down the front either side to lever the 2 tabs in, then they fall out
Hello my name is John and I'm a dub addict.
My wiring diagrams and other documents have moved here:
VAG Documents & Downloads
You'll need to sign into google/gmail for the link to work! (its free!)
My wiring diagrams and other documents have moved here:
VAG Documents & Downloads
You'll need to sign into google/gmail for the link to work! (its free!)
Posted
Newbie
Resurrecting the old thread, rather then making a new one.
Do you also happen to know the PNs for the small and large pins maybe? I believe they're made by TE/AMP but I'm struggling to find the exact ones.
VAG PN are 000979108e and 000979110e for the small and large one respectively…
Considering to re-pin some/most/all of the CE1 connectors as to get rid of the need for shaking/wiggling them from time to time.
Cheerio
Do you also happen to know the PNs for the small and large pins maybe? I believe they're made by TE/AMP but I'm struggling to find the exact ones.
VAG PN are 000979108e and 000979110e for the small and large one respectively…
Considering to re-pin some/most/all of the CE1 connectors as to get rid of the need for shaking/wiggling them from time to time.
Cheerio
be humble. sit down
Posted
MOTY 2013
classic-vw do them:
https://www.classic-vw.co.uk/fuse-box-plug-pin-large--golf-jetta-caddy-scirocco-18471-p.asp
https://www.classic-vw.co.uk/s1-fuse-box-plug-pin-small--golf-jetta-caddy-scirocco-18459-p.asp
https://www.classic-vw.co.uk/fuse-box-plug-pin-large--golf-jetta-caddy-scirocco-18471-p.asp
https://www.classic-vw.co.uk/s1-fuse-box-plug-pin-small--golf-jetta-caddy-scirocco-18459-p.asp
Hello my name is John and I'm a dub addict.
My wiring diagrams and other documents have moved here:
VAG Documents & Downloads
You'll need to sign into google/gmail for the link to work! (its free!)
My wiring diagrams and other documents have moved here:
VAG Documents & Downloads
You'll need to sign into google/gmail for the link to work! (its free!)
Posted
MOTY 2013
TE/AMP part numbers:
TE/AMP multimate type III:
163084 - female - 0.75-1mm (2.01 - 2.49)
####
TE/AMP Mate-N-Lok:
925661 - 0.5-2mm (2.50 - 4.50)
350390 - 2-6mm (2.54-4.57)
TE/AMP multimate type III:
163084 - female - 0.75-1mm (2.01 - 2.49)
####
TE/AMP Mate-N-Lok:
925661 - 0.5-2mm (2.50 - 4.50)
350390 - 2-6mm (2.54-4.57)
Hello my name is John and I'm a dub addict.
My wiring diagrams and other documents have moved here:
VAG Documents & Downloads
You'll need to sign into google/gmail for the link to work! (its free!)
My wiring diagrams and other documents have moved here:
VAG Documents & Downloads
You'll need to sign into google/gmail for the link to work! (its free!)
