KR 16v Coolant temp, oil temp, or pressure ? Tell me please.

Noticed this forum has a  Servere lacking of Photos regarding most questions…. anyway…..

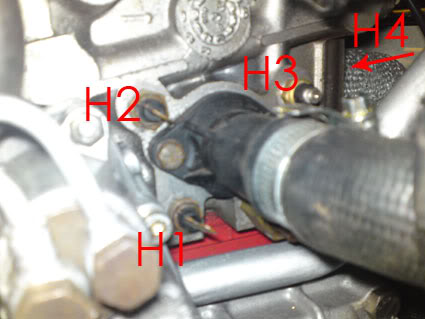

I have 3 sensors in the photo below can anyone tell me what they are and what order there in please.

I think H4 is the oil temp sensor ? but what are H1 H2 and H3.


MK1 83 Jetta… 2ltr 16v ACE
MK1 88 caddy pickup 20VT soon
MK2 Golf 90spec 2ltr ABF coming soon
T5 TDI

Post

Back to the top
H4 is the oil temp sender and the other 3 are all temp senders for the ecu.

'81 1.8T
BMW R1200GSA
Caddy 2k 1.8T

Post

Back to the top
Temp senders of which variety though ??

Why 3 ?, surely they all have a different roll to play ?

MK1 83 Jetta… 2ltr 16v ACE
MK1 88 caddy pickup 20VT soon
MK2 Golf 90spec 2ltr ABF coming soon
T5 TDI

Post

Back to the top
All 3 are water temp senders, 1ecu, 1 for isv and the other is the dash i think.

'81 1.8T
BMW R1200GSA
Caddy 2k 1.8T

Post

Back to the top
as above, water temp for dash (red/yellow), ecu (blue/white) and isv control unit (red/green).
They are all the same rating so it doesn't really matter what way round you fit the wires. just make sure they all have a black collar on as per the pic! h4 is oil temp for mfa, and it should have a white collar on.
