Got a few things not working properly in the cluster.
But I'm loath to take the clocks out again as all the essentials are working.
I'm just changing the indicator F0543BF4-3842-4F3D-B91B-1ED1C25E5943.jpeg switch and I notice this plug is not in its home? Any thoughts?

Post

Back to the top
Nothing to do with hazards is it…?

Post

Back to the top
No.

What do Divorces, Great Coffee, and Car Electrics all have in common?

They all start with GOOD Grounds.

Where are my DIY Links?

Post

Back to the top
Thanks. Concise answer. Nice.  😁

Post

Back to the top

shelltoes said

Got a few things not working properly in the cluster.
But I'm loath to take the clocks out again as all the essentials are working.
I'm just changing the indicator F0543BF4-3842-4F3D-B91B-1ED1C25E5943.jpeg switch and I notice this plug is not in its home? Any thoughts?


I am happy to be told otherwise,  but If memory serves I think that's off the back of the dash heater matrix control panel and powers the bulb that illuminates it at night.


Post

Back to the top
Yep I was right - I knew I would have a photo somewhere! I always take photos when I take stuff apart in case I forget!

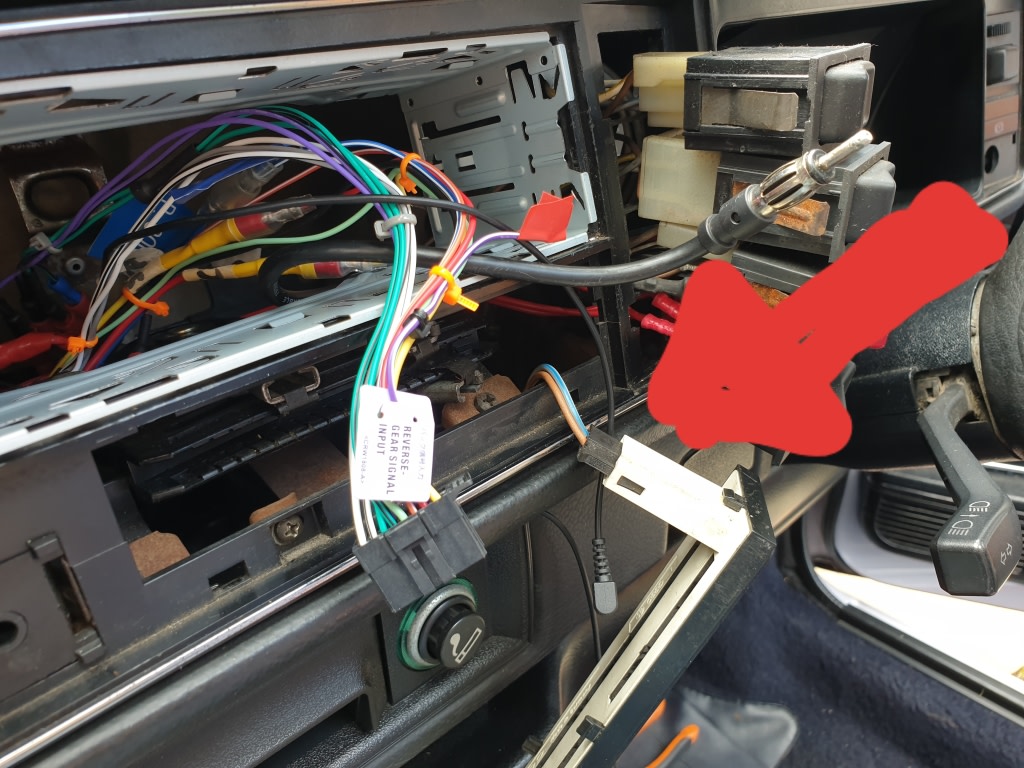

See this photo for where it belongs!



Post

Back to the top
Same plug, different wires.
I fixed the heater lights just the other day!
Thanks mate for the help though.

Post

Back to the top

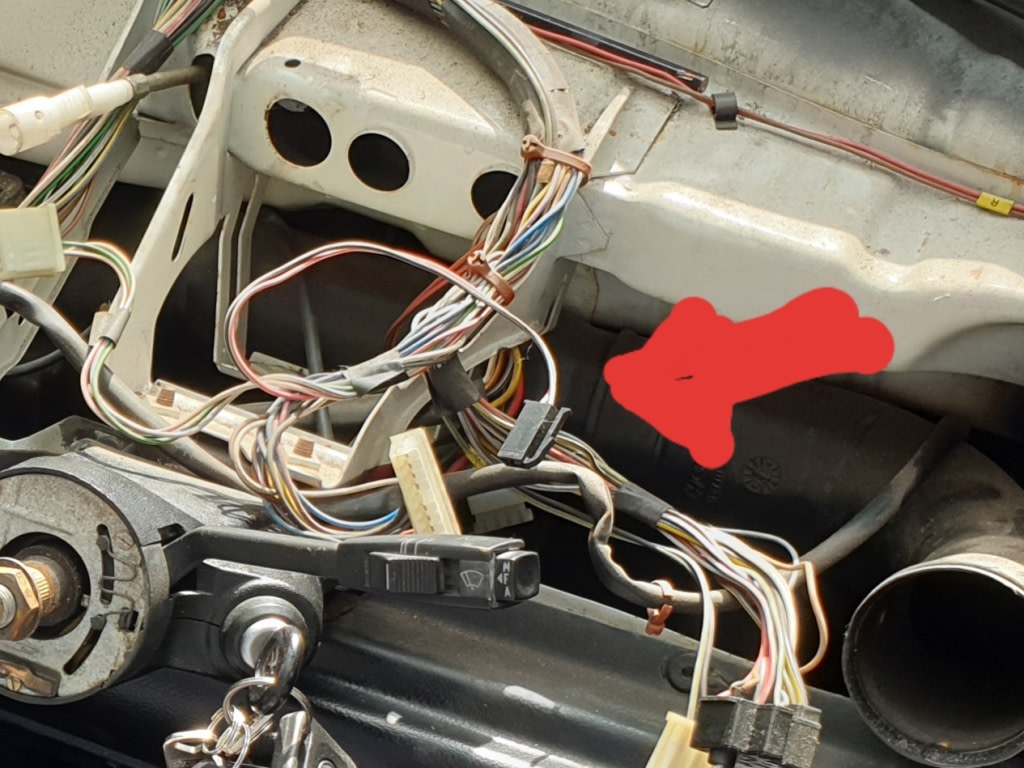

Same as but different! I think it must be from the back of your cluster - I found it in this photo - see it bundled up with the cluster/Speedo wiring


Post

Back to the top
That's it!
Where does it live, is the next question.
Thanks mate.

Post

Back to the top
Hmmm. How about the full beam indicator?

Post

Back to the top
looking at the bentley those are colors of wires that go to the MFA.


What do Divorces, Great Coffee, and Car Electrics all have in common?

They all start with GOOD Grounds.

Where are my DIY Links?

Post

Back to the top
MFA seems to work.
The readings are a bit unbelievable though I must admit.
I just don't want to disturb the dash now almost everything is working. Certainly enough for it to be the daily.
Hmmm. Thanks though mate.

Post

Back to the top
yes that plugs into the back of the cluster, its for the late type mfa clocks without the 1/2 knob on the front.

the wires are the 1/2 switch and reset feeds from the late type stalk with the extra switch on it

Hello my name is John and I'm a dub addict.



My wiring diagrams and other documents have moved here:

VAG Documents & Downloads

You'll need to sign into google/gmail for the link to work! (its free!)

Post

Back to the top
Right. That makes sense..
Thanks.
Im avoiding taking the clocks out but next time i will look for the hole!

Post

Back to the top
you can probably get to it from underneath or thru the radio hole :)

Hello my name is John and I'm a dub addict.



My wiring diagrams and other documents have moved here:

VAG Documents & Downloads

You'll need to sign into google/gmail for the link to work! (its free!)

Post

Back to the top
Not all clocks have a socket for it, mine does but I have tried earlier clocks in the car without somewhere to put this plug and it didn't seem to make a blind bit of difference

Current rides:

2003 BMW 330d Manual Saloon Msport
1985 GTI cabriolet black edition (42k miles)
1999 Triumph Daytona 955i Post apocalyptic, rat, brat, scrambler, steam punk, cafe racer


Post

Back to the top
Early clocks in late car is fine because the 1/2 select knob is on the front. Late clocks in an early car still work but you can't select between mode 1 and 2 unless you add the later stalk and extra 2 wires from it
