Watson’s engine rebuild - new mot and a few new pics....

A big thank you to Steve G for all his help in HGT's engine rebuild. I've been off work for a while after shoulder surgery. So with no driving, or using my arm, HGT was stuck  in the garage and going nowhere. Steve suggested it was the perfect time to turn the worst part of the golf into the best bit.

So with me as teaboy and operating the camera with one good arm, Steve lifted the engine out and started stripping it down.  The Plan -  rebore the block, new pistons, clean and paint block.  Head and manifolds vapour blasted - also various other engine parts vapour blasted before painting or plating.

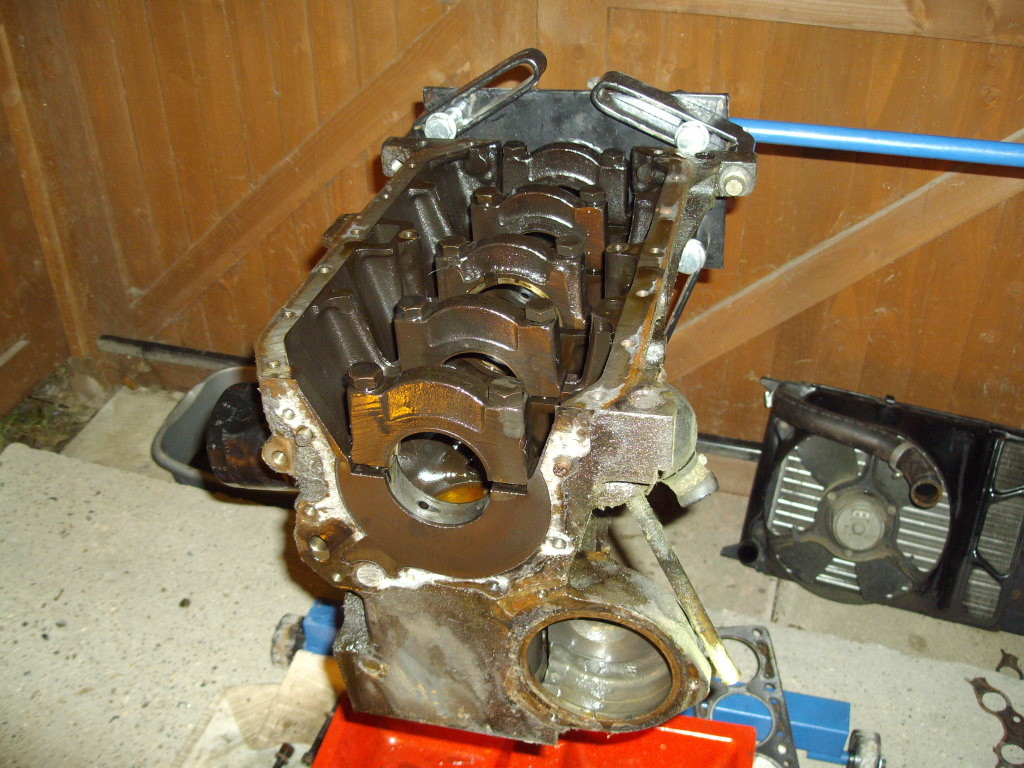

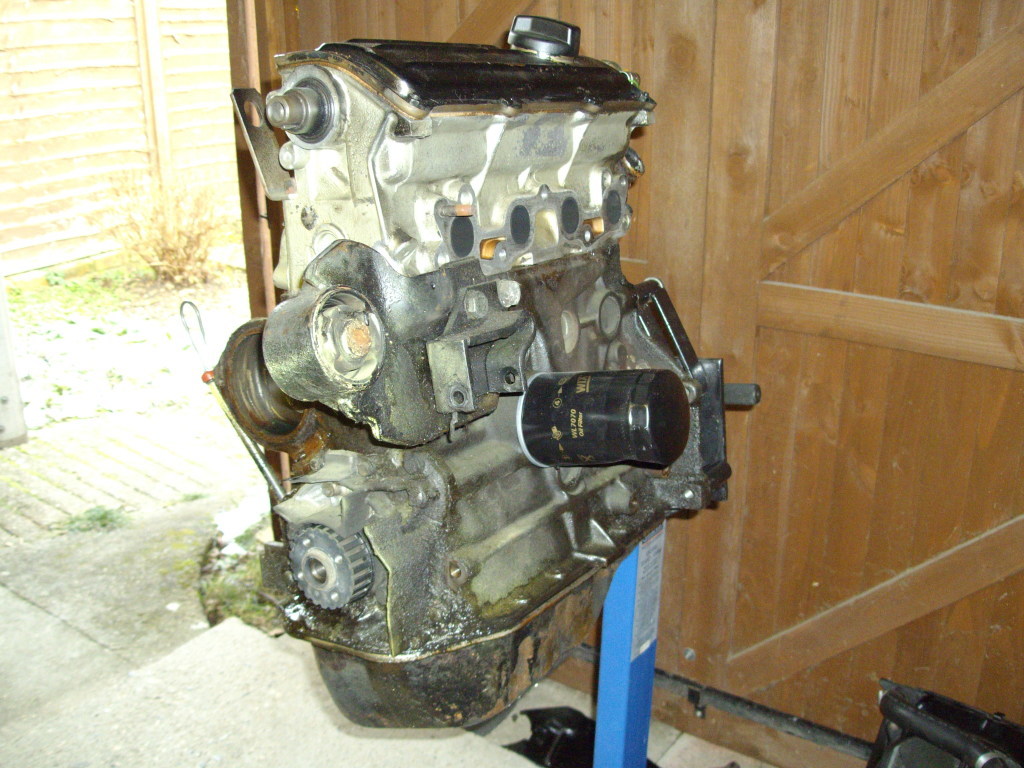

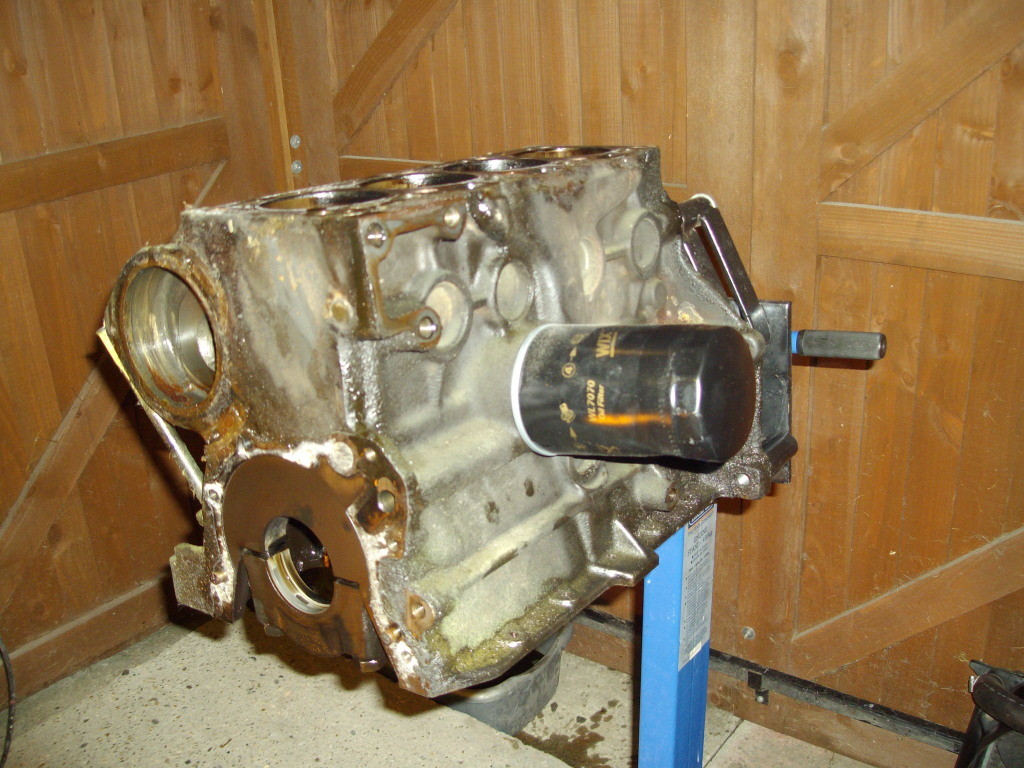

Dirty engine ! (ashamed!)



[ IMGP1479.JPG









Cylinder block being re-bored.

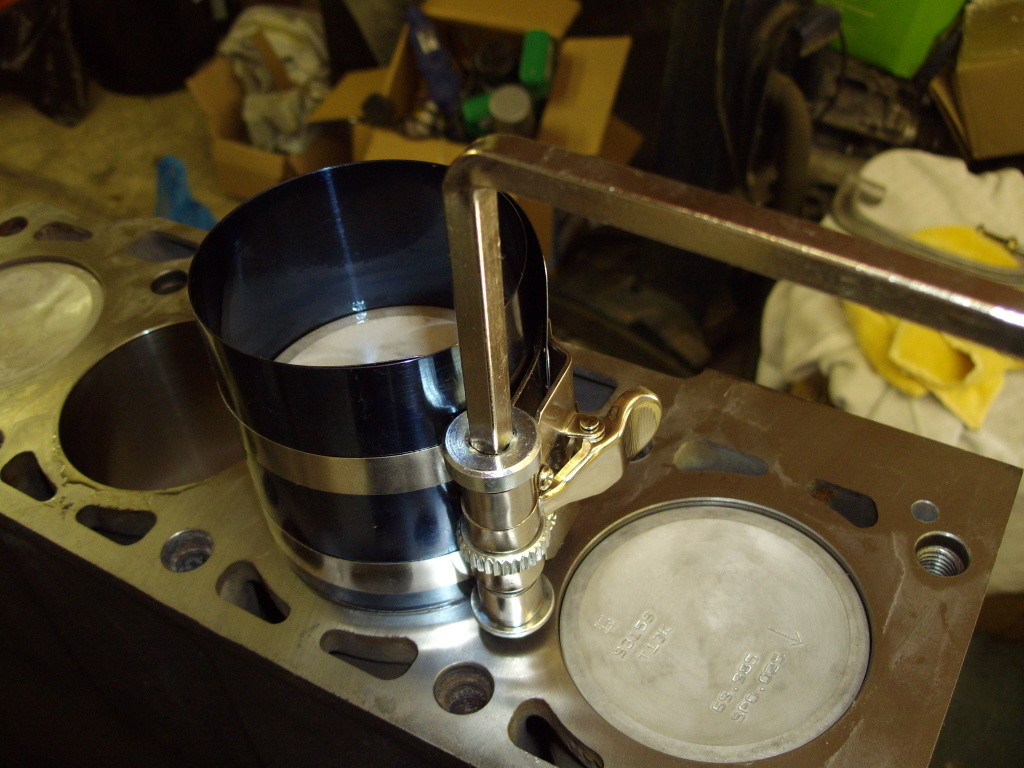

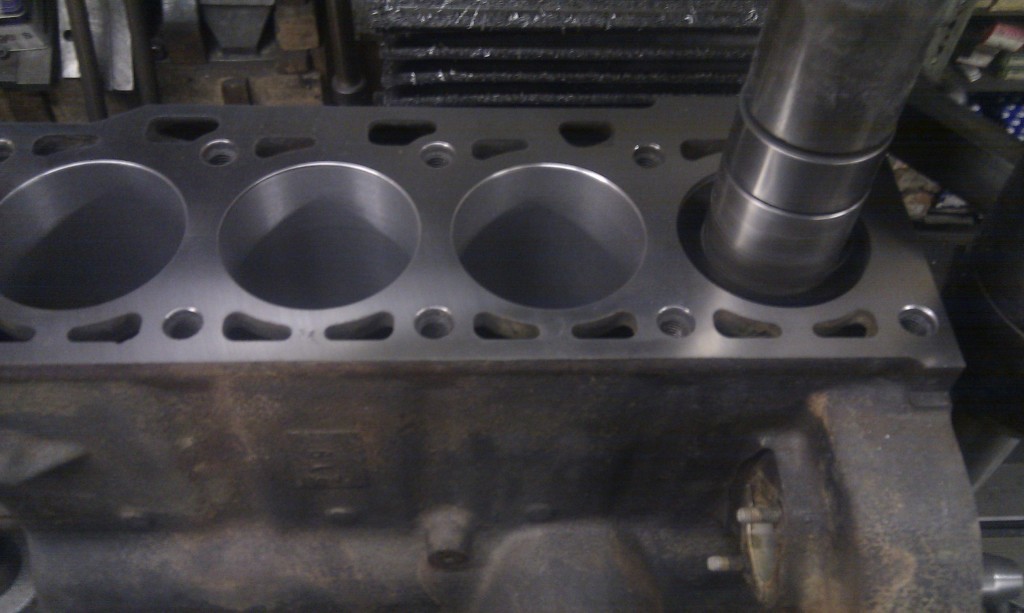

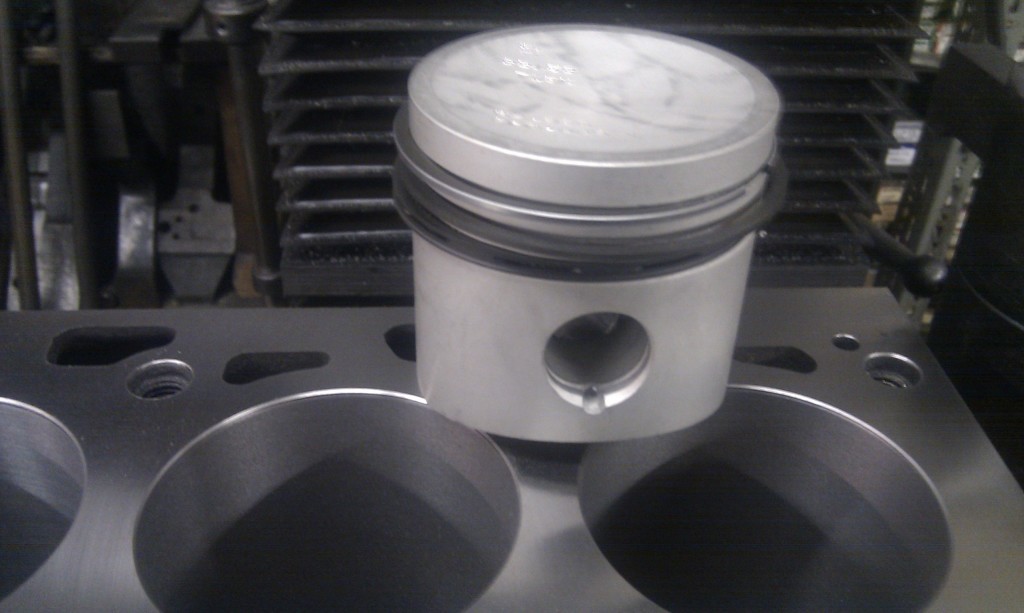

One of the new pistons on the bored block. Next process - diamond hone the bores to the finished size before final cleaning and paint.

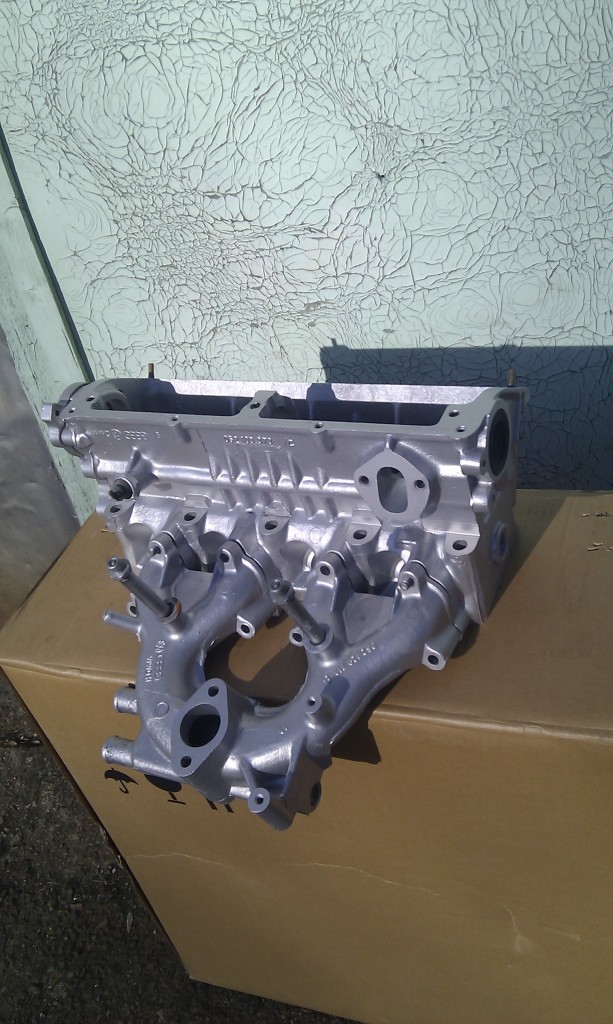

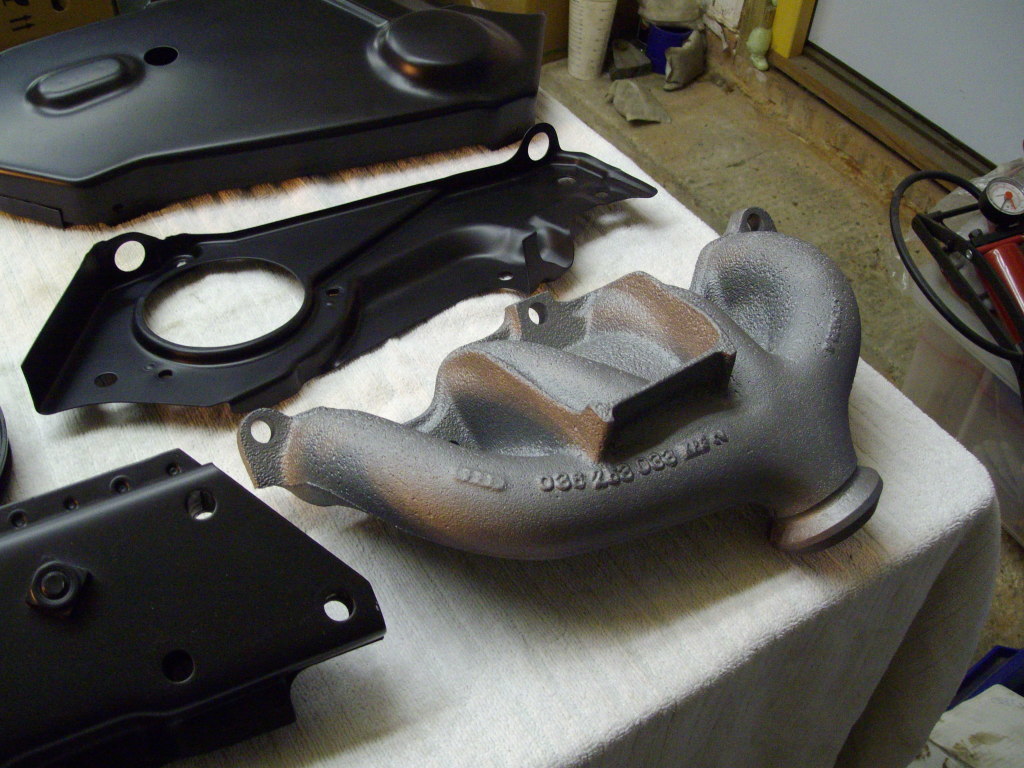

Cylinder head and inlet manifold fresh from blasting.

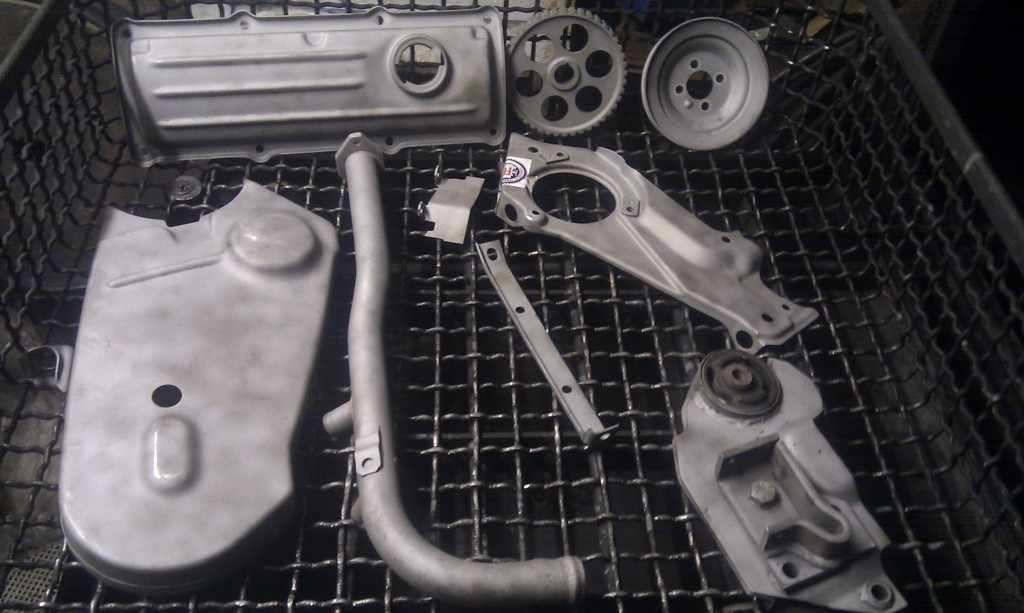

Other parts fresh from vapour blasting, ready for painting or plating.



Last edit: by watson

Post

Back to the top
Not going for the 20v turbo transplant then Dave?

Good, glad you're not. Can't wait for the next pic installment.

1983 Mars Red 1.8 Golf GTI
1987 Alpine White 1.8 Clipper Cabriolet

The trouble with doing nothing is that you never know when you are finished.

Post

Back to the top
Keep it up Dave

Banner

Post

Back to the top
amazing stuff done.....love the finish on the head and manifold....i would try and keep it that colour. :)

Post

Back to the top
Well you've been promising to have a stab at this for years mate so about time I say. I'm looking forwards to seeing the results.

Good luck with that shoulder!

T

Post

Back to the top
Lovely work Dave,

You doing it yourself ???

Diesel Possessed

A97JCE

Feeby

Post

Back to the top

allana13 said

Lovely work Dave,

You doing it yourself ???

watson said


So with me as teaboy and operating the camera with one good arm, Steve lifted the engine out and started stripping it down.

He's an old man with a dodgy arm, don't make him repeat himself!

T :faq:

Post

Back to the top
:redfaced:

Looks cracking though mate :wink:

Diesel Possessed

A97JCE

Feeby

Post

Back to the top

Tian said


He's an old man with a dodgy arm, don't make him repeat himself!

T :faq:

T he aint that old mate :mrgreen:

Early 50's but still young at heart  :D  :mrgreen:  :mrgreen:

Diesel Possessed

A97JCE

Feeby

Post

Back to the top

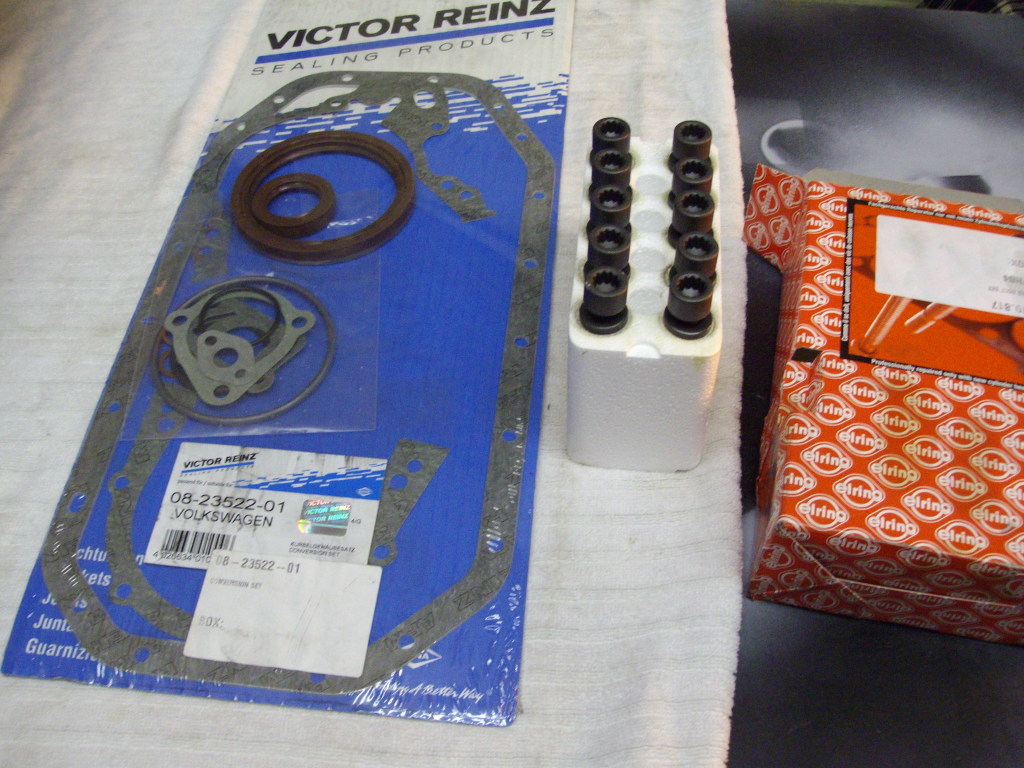

Got a fair bit done this week. Mostly cleaning and painting the components, and  rebuilding the head.

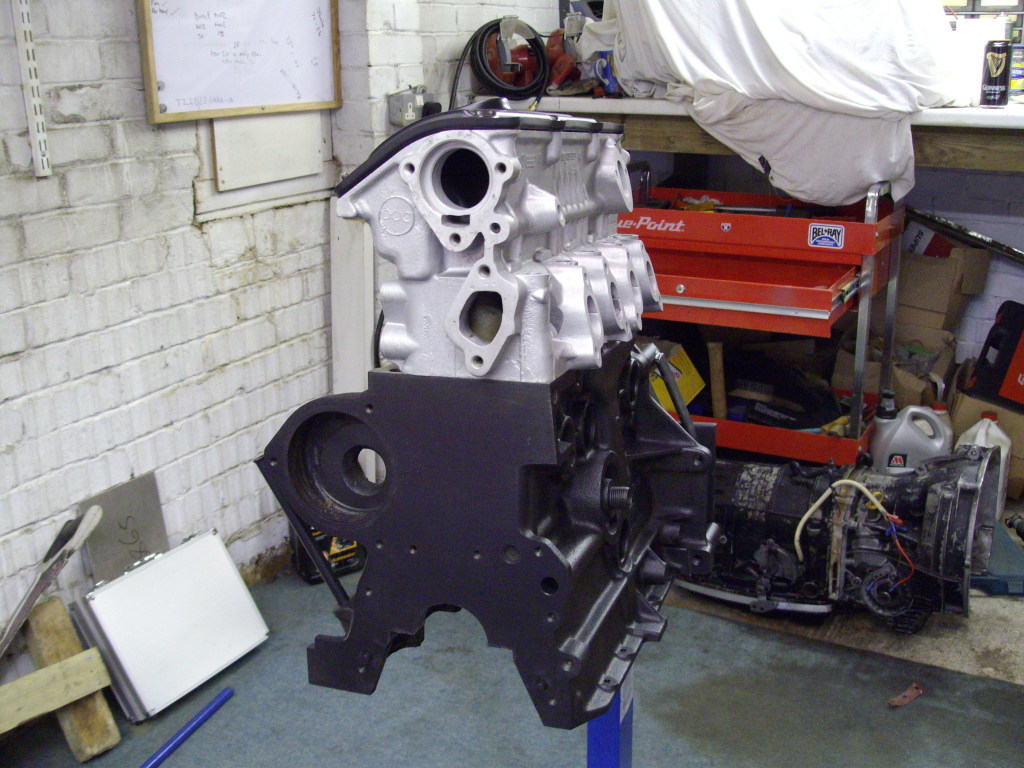

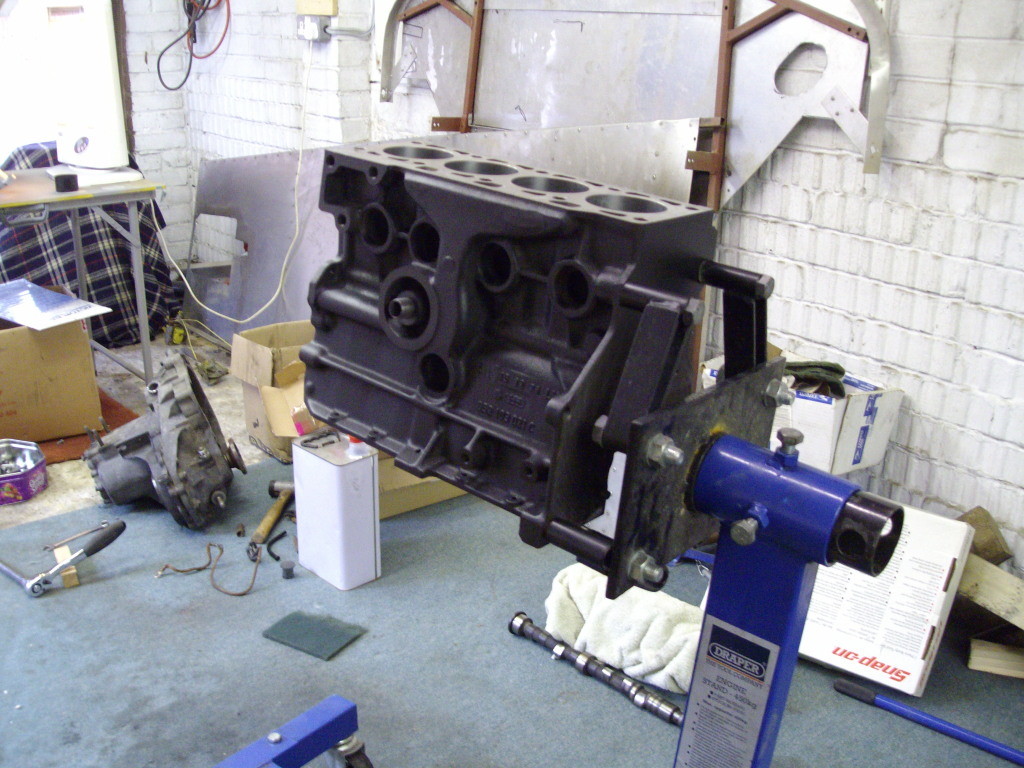

Block cleaned and painted.


Couldn't resist placing the head and rocker cover on the block to see what it looked like.



Valves standing to attention.

[ IMGP1550.JPG

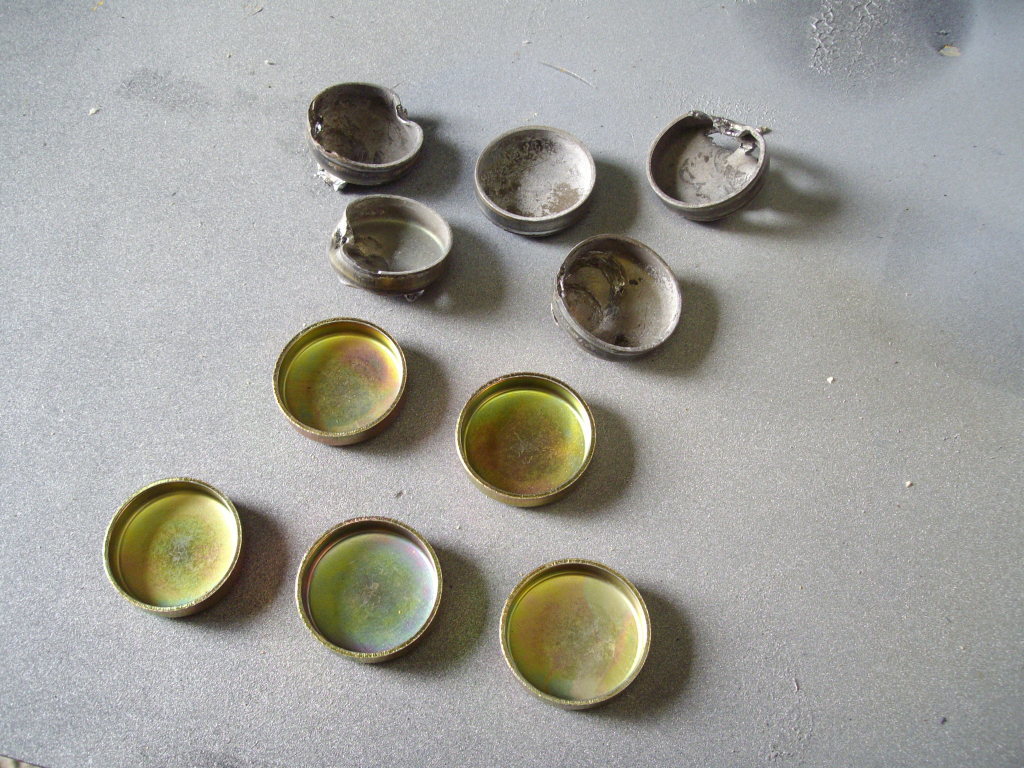

New core plugs.

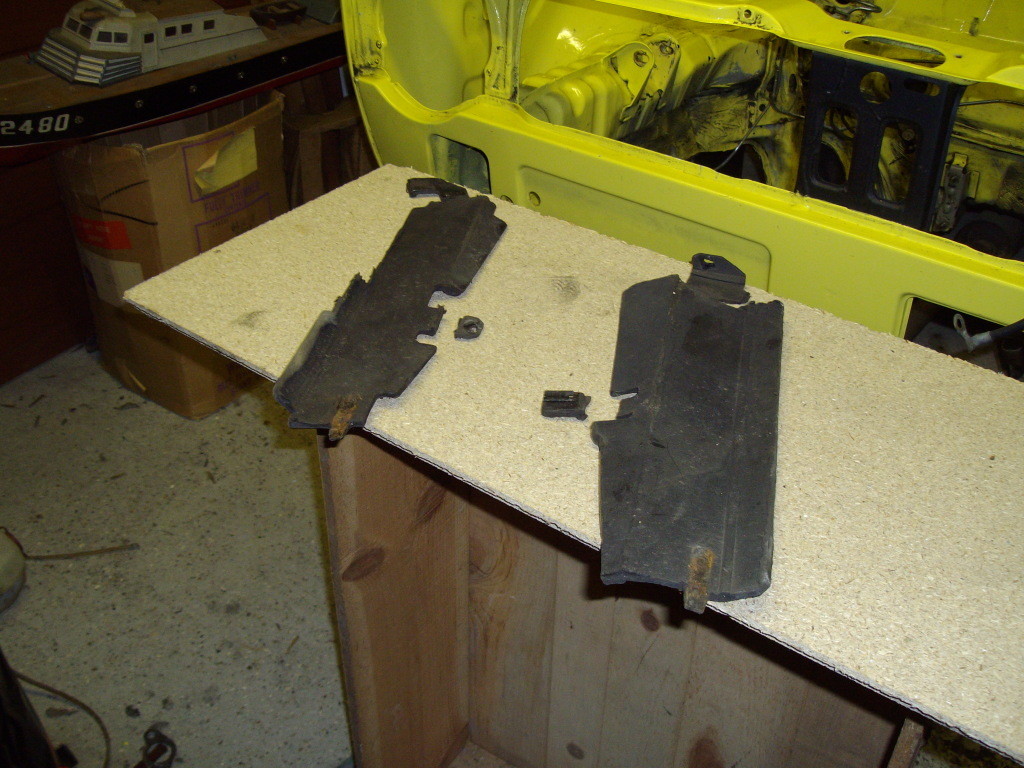

Old cardboard air deflectors seen better days - well 32 years!

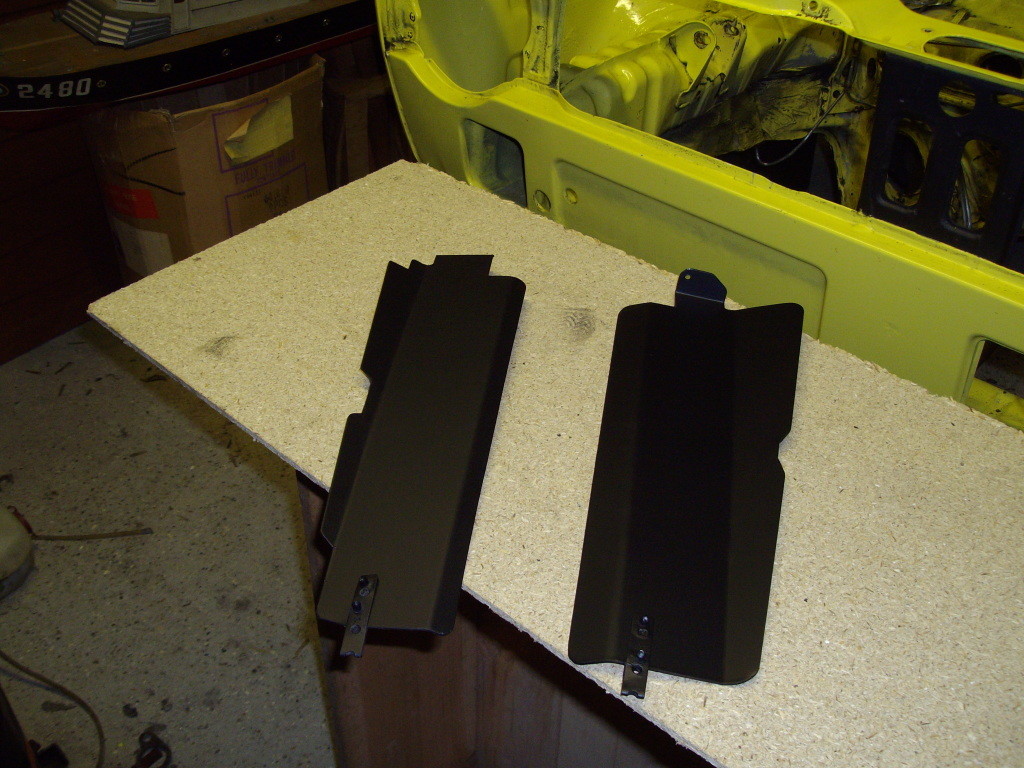

So made some new ones.


New clutch.

New alternator.



Post

Back to the top
nice work watson, i see the exhaust mani is grey :) did you paint the bits or had them powered coated? keep it up

Post

Back to the top
Great work going in there Dave, Looks awesome  8)  :mrgreen:  :mrgreen:

Diesel Possessed

A97JCE

Feeby

Post

Back to the top

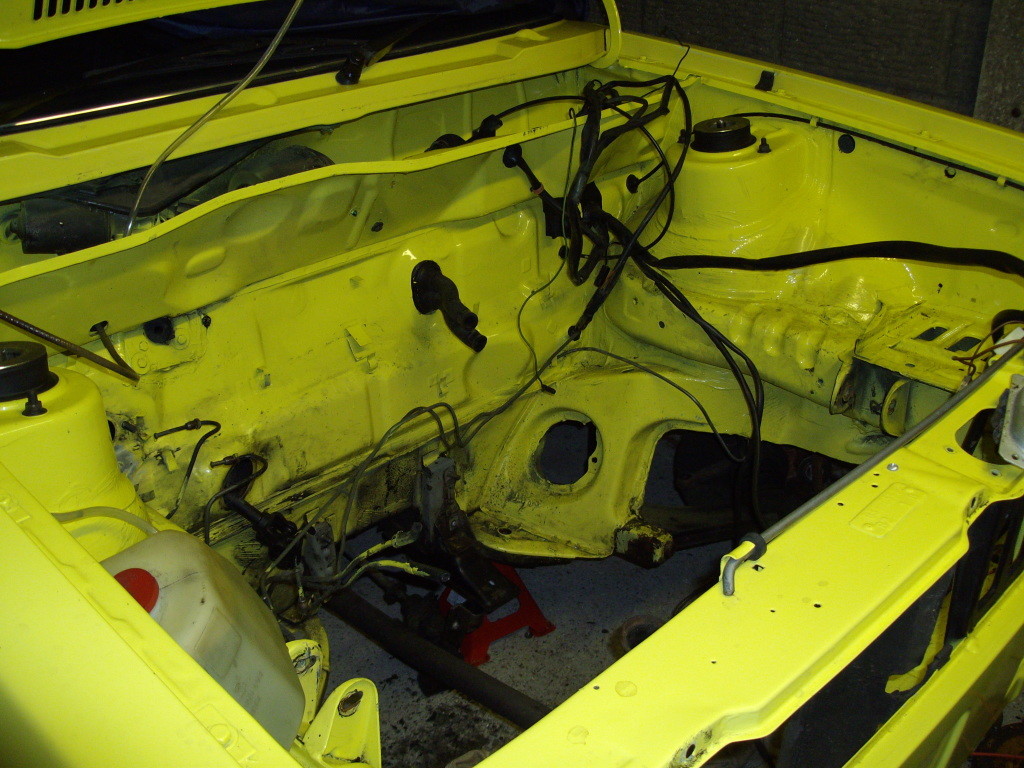

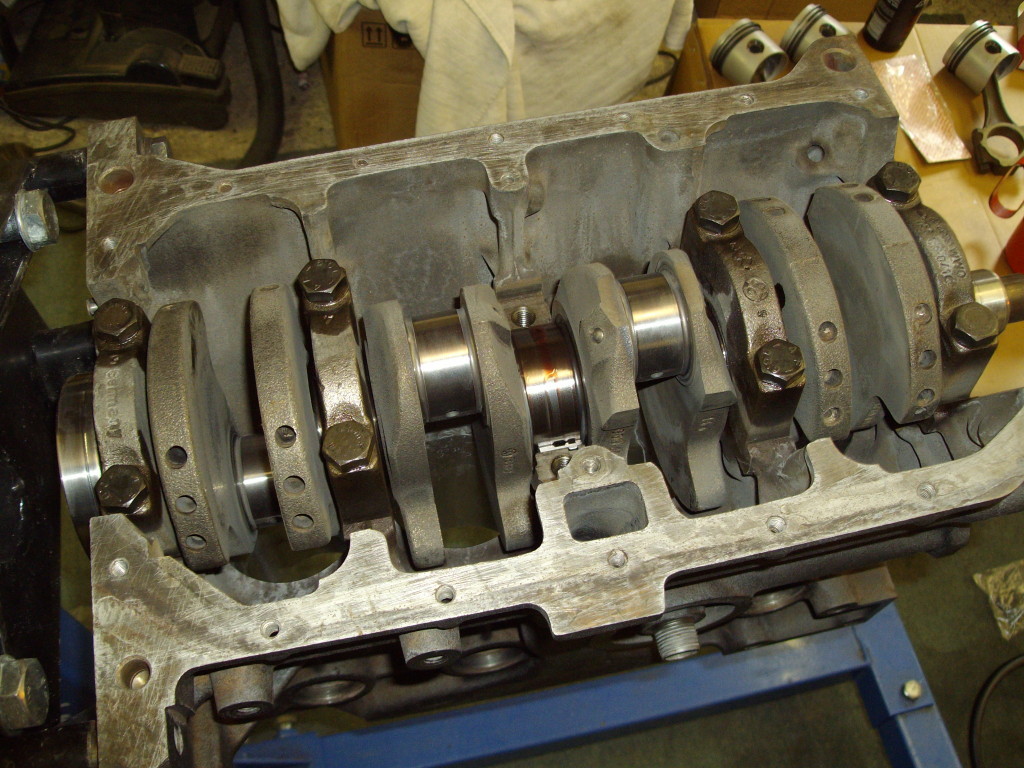

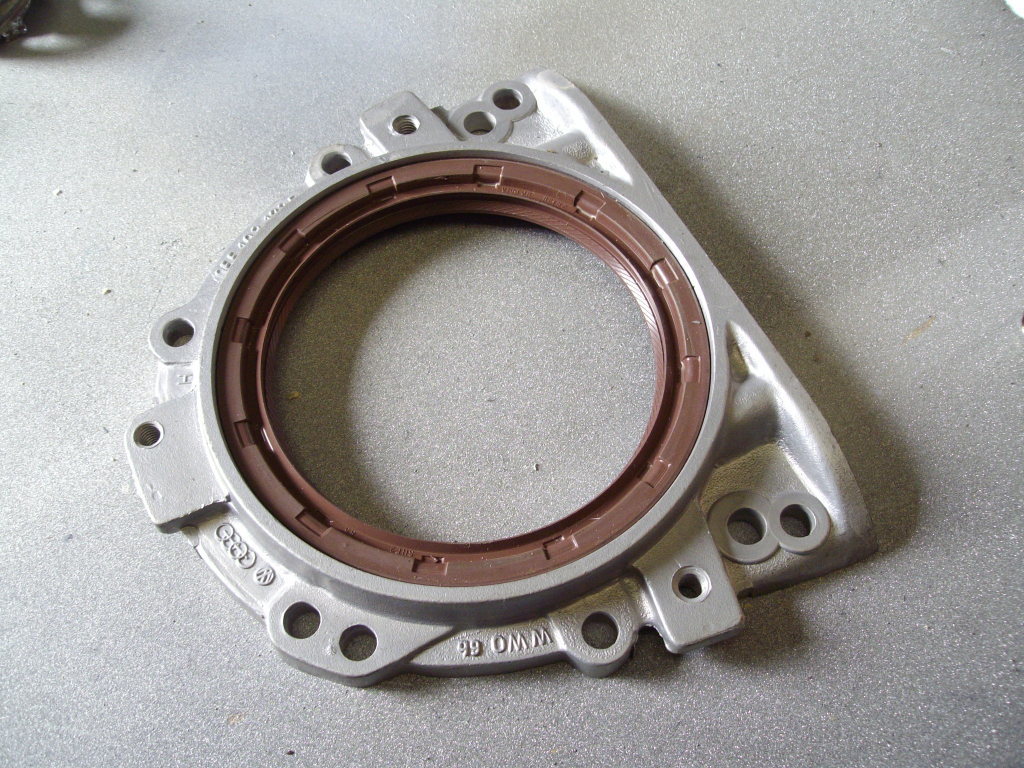

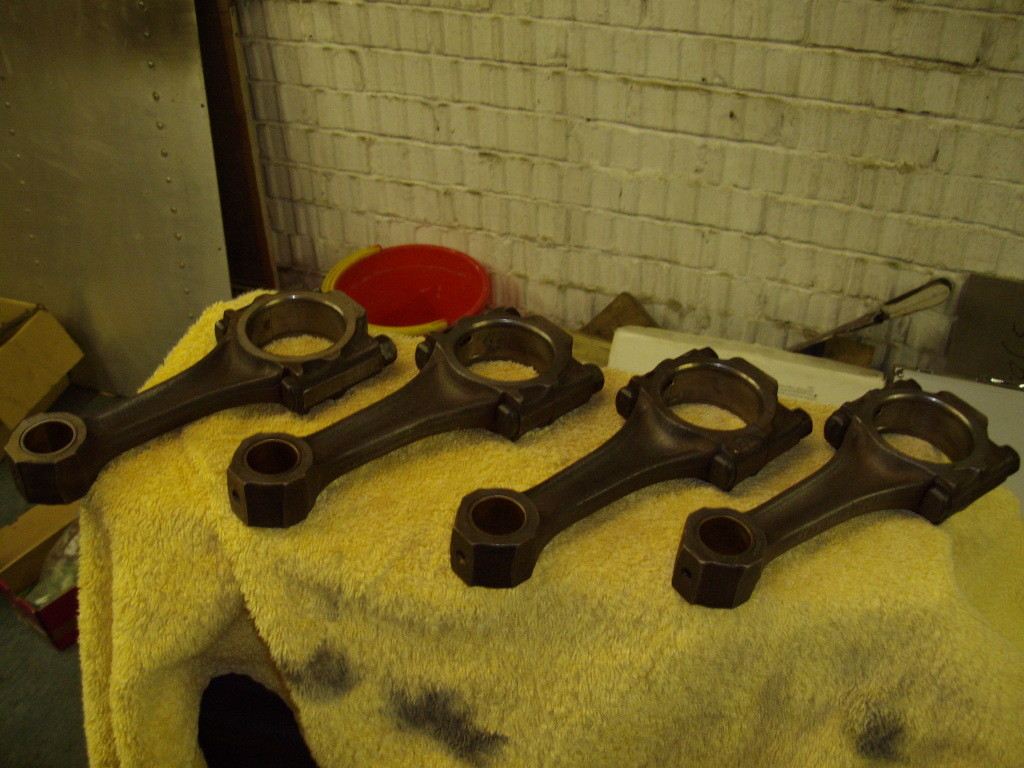

Had a bit of a job hunting down a new oil feed pipe that runs inside the rocker cover, the fixing lugs on the old one had broken off.  Thanks to Dubboy for finding a replacement. Steve's been fitting up the block  since the last update. Although the old crankshaft was in good condition, the oil pump drive was worn - apparently this is quite a common weak point. A quick trip to Crazyquiff, and we had a new one - well a new second hand one in much better condition.  I've also decided to have HGTs empty engine bay prepped and repainted before the rebuilt engine is dropped back in. Can't wait to drive it again.




Oil pump drive

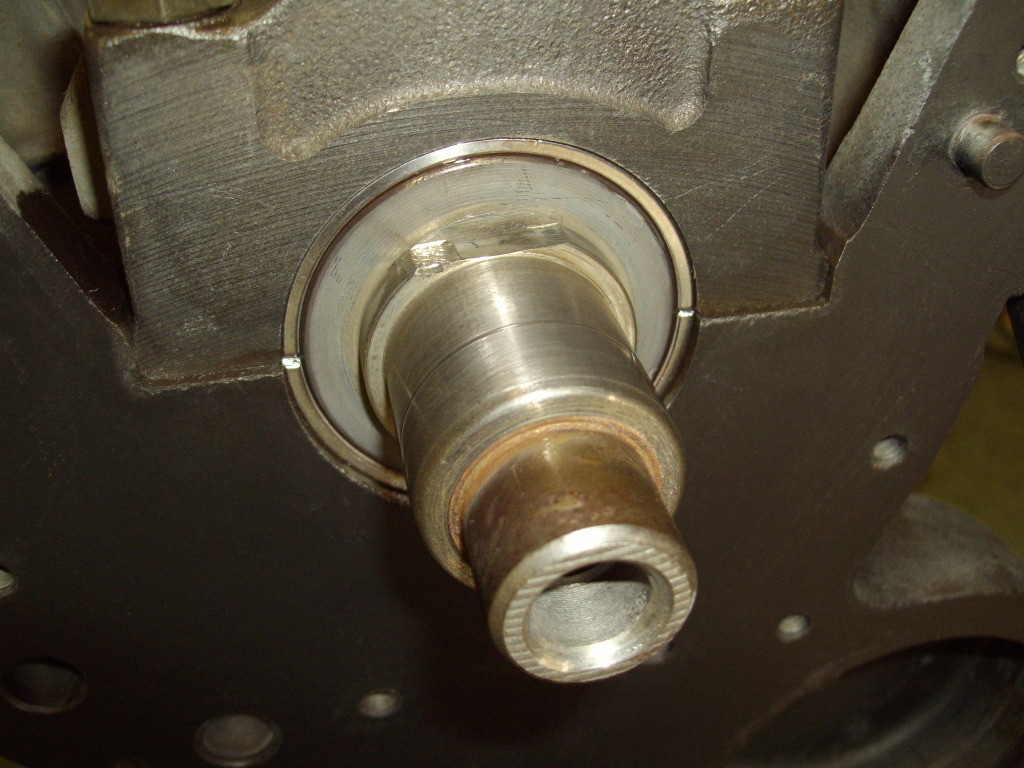

Crankshaft end flow check




New oil pump

[ IMGP1604.JPG



Fitted



Oil feed pipe

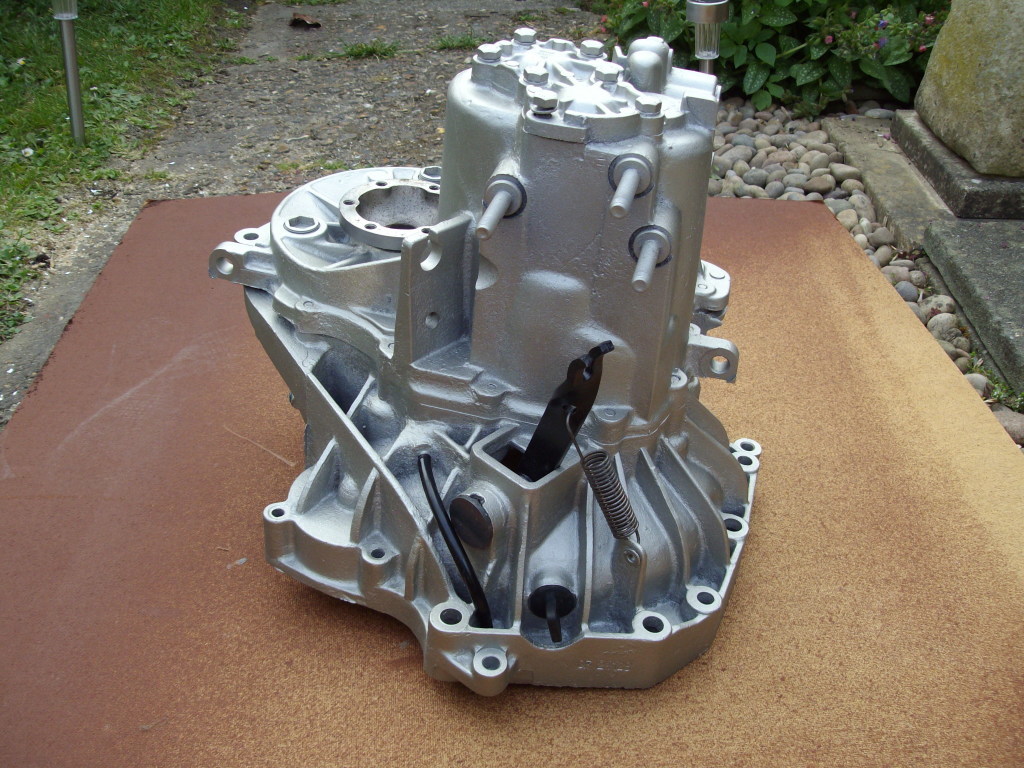

Gearbox referbed


Post

Back to the top
That is quality topnoch work Dave

Wel done  :mrgreen:  :mrgreen:

Diesel Possessed

A97JCE

Feeby

Post

Back to the top

Post

Back to the top

Post

Back to the top
lovely, pretty much exactly what I'm doing to my engine but mine's on a much smaller budget.

Post

Back to the top
Dave
how's the rebuild going, will it be ready for DATP?

James

Click for Berkshire Mk1's>>> Facebook

Post

Back to the top

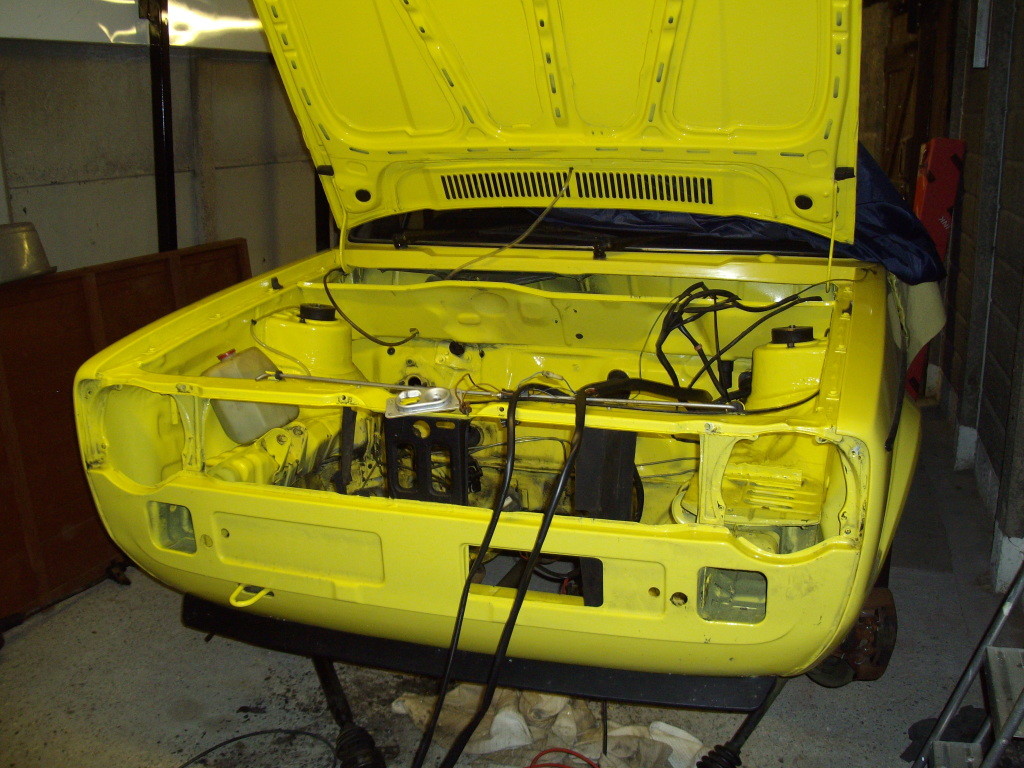

Afraid the mk1 won't be ready for DATP. Engines all finished, but can't get the bay painted till the week of the 16th. Just not enough time  :banghead:  Was really looking forward to this one and the convoy bit too. Have a good time chaps - and have a burger for me !
